Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Rear Left Safety Belt Buckle - Vehicles With: 60/40 Split Seat (G448512)

REMOVAL AND INSTALLATION
  • 76.73.60
  • Buckle - Second row seatbelt - LH/each 60/40 split - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

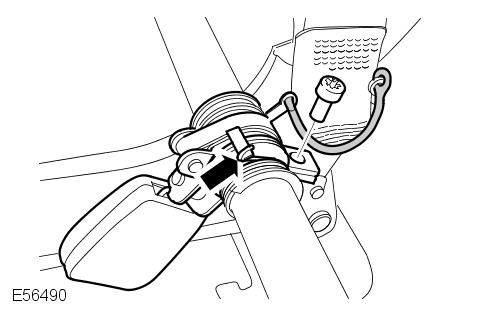

  1. E56490
    Remove the safety belt buckle.
      • Raise the seat cushion.
      • Release the retaining strap.
      • Remove the Torx bolt.
      • Release the tension spring.
Installation
  1. Install the safety belt buckle.
      • Attach the tension spring.
      • Tighten the Torx bolt to 25 Nm (18 lb.ft).
      • Attach the retaining strap.
      • Lower the seat cushion.
