Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Door Lock Cylinder (G434617)

REMOVAL AND INSTALLATION
  • 76.37.39
  • Private lock - front door - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

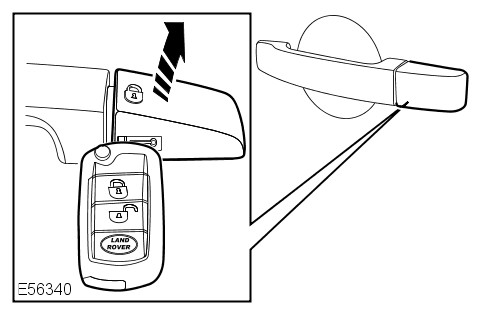

  1. E56340
    Remove the front door lock cylinder cover.
      • Use the ignition key.
  2. NOTE:

    The Torx screw remains in the door lock housing.

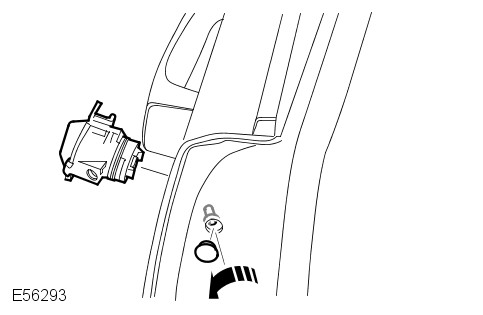

    E56293
    Remove the front door lock cylinder.
      • Open the door.
      • Remove the access plug.
      • Loosen the Torx screw to release the lock.
Installation
  1. To install, reverse the removal procedure.
