Published: 11-May-2011

2007.0 Range Rover Sport (LS), 308-07A

Four-Wheel Drive Systems

Transfer Case Clutch Solenoid - Vehicles With: Vehicles Built Up To: 12/2008 (G428994)

REMOVAL AND INSTALLATION
  • 41.30.08
  • Solenoid - clutch control - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. CAUTION:

    Connect T4, prior to removal of the solenoid.

    NOTE:

    Some fluid spillage is inevitable during this operation.

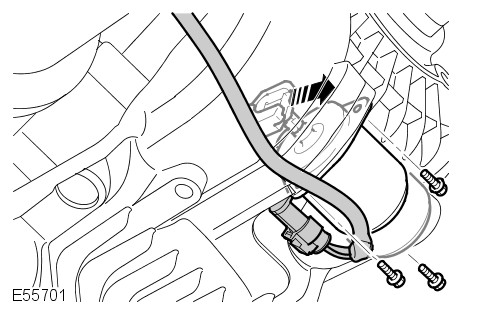

    E55701
    Remove the transfer case clutch control solenoid.
      • Position a container to collect the fluid spillage.
      • Remove the 3 Torx screws.
      • Use T4 to energise the solenoid.
      • Detach from the selector lever.
      • Disconnect the electrical connector.
Installation
  1. CAUTION:

    Make sure the seal is installed correctly.

    Install the transfer case clutch control solenoid.
      • Clean the components.
      • Connect the electrical connector.
      • Use T4 to energise the solenoid.
      • Install to the selector lever.
      • Tighten the Torx screws to 10 Nm (7 lb.ft).
  2. Check and top-up the transfer case fluid level.
  3. Using T4, calibrate a new transfer case control solenoid.
