2007.0 Range Rover Sport (LS), 501-10

Seating

Rear Seat Backrest Cover (G428870)

REMOVAL AND INSTALLATION
  • 78.90.72
  • Cover - squab - rear seat - side - LH/each 60/40 split - renew
  • All Derivatives
  • 1.00
  • USED WITHINS
Removal
NOTE:

This procedure shows the removal of both the LH and RH covers.

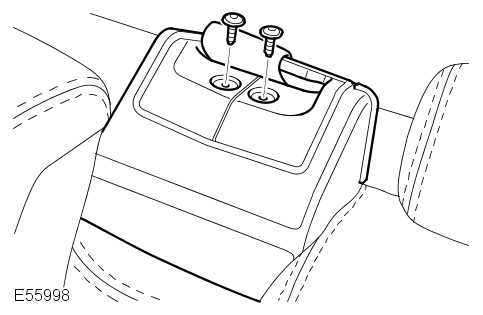

  1. E55998
    LH seat only: Remove the safety belt retractor cover and guide.
      • Remove the 2 screws.

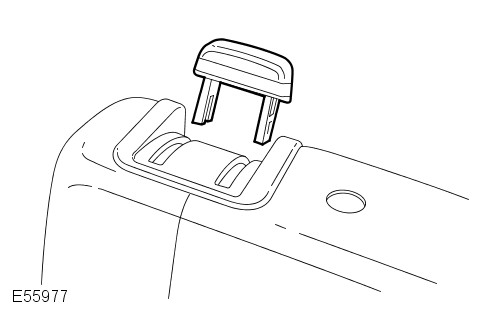

  2. E55977
    Remove the rear seat release handle.

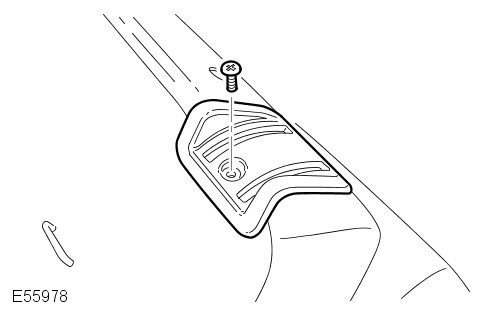

  3. E55978
    Remove the rear seat release handle finisher.
      • Remove the screw.

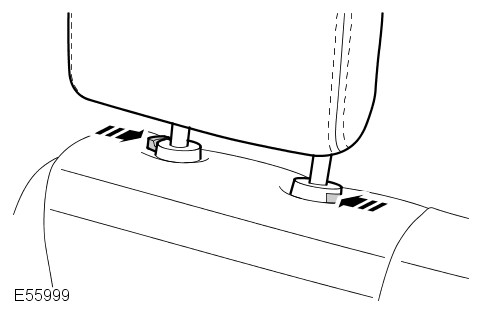

  4. E55999
    Remove the rear seat head restraint.
      • Depress the 2 retaining clips.

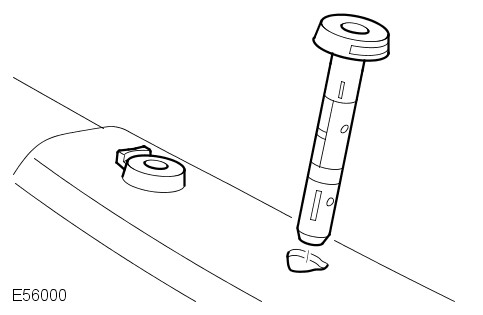

  5. E56000
    Remove the rear seat head restraint retaining clips.

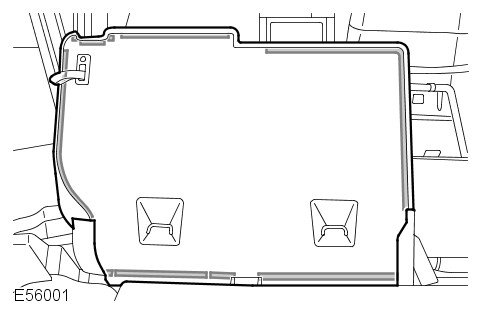

  6. E56001
    Release the rear LH seat backrest cover.
      • Release the 10 clips.

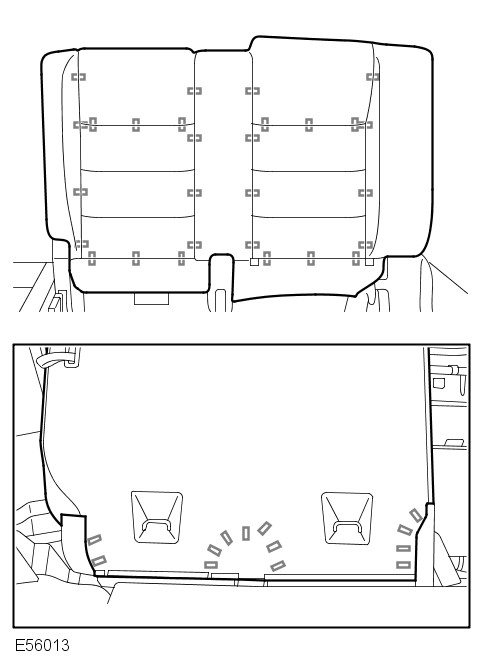

  7. E56013
    Remove the rear LH seat backrest cover.
      • Remove the 41 hog rings.

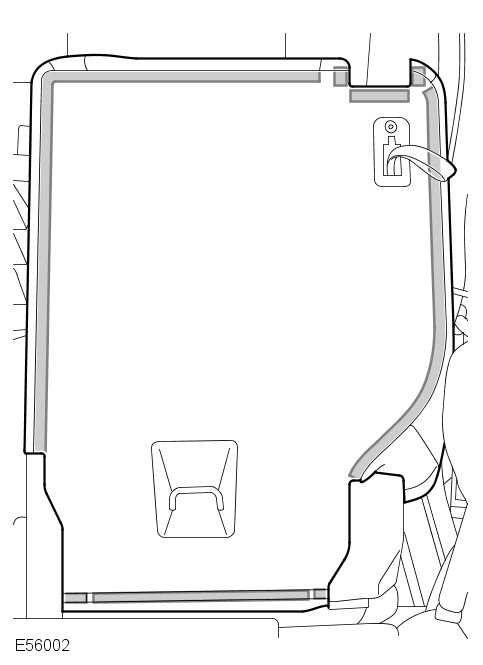

  8. E56002
    Release the rear RH seat backrest cover.
      • Release the 9 clips.

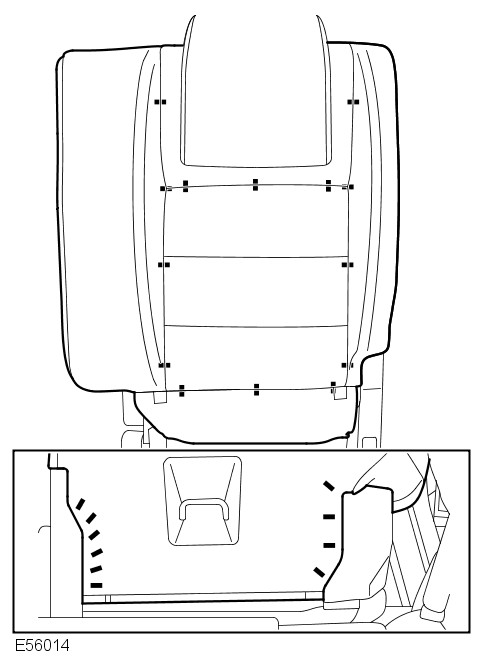

  9. E56014
    Remove the rear RH seat backrest cover.
      • Remove the 24 hog rings.
Installation
  1. Install the rear seat backrest cover.
      • Install the hog rings.
      • Attach the clips.
  2. Install the rear seat head restraint retaining clips.
  3. Install the rear seat head restraint.
  4. Install the rear seat release handle finisher.
      • Tighten the screw.
  5. Install the rear seat release handle.
  6. Install the safety belt guide and retractor cover.
      • Attach the safety belt guide and retractor cover.
      • Tighten the screws.
