2007.0 Range Rover Sport (LS), 412-04

Control Components

In-Vehicle Temperature Sensor (G428461)

REMOVAL AND INSTALLATION
  • 82.20.93
  • Air Temperature Sensor - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Fully extend the steering column for access.
  2. E51369
    Remove the instrument panel access panel.
      • Release the 2 clips.
  3. E50851
    Remove the steering column upper shroud.
      • Release the 6 clips.
  4. E52017
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.

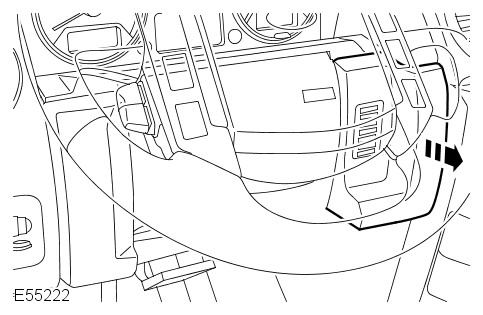

  5. E55222
    Remove the steering column side trim panel.
      • Release the clips.
      • Repeat the above procedure for the other side.

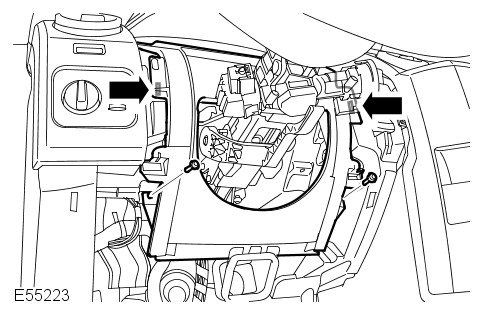

  6. E55223
    Release the steering column gaiter panel.
      • Remove the 2 Torx screws.
      • Release the 2 clips.

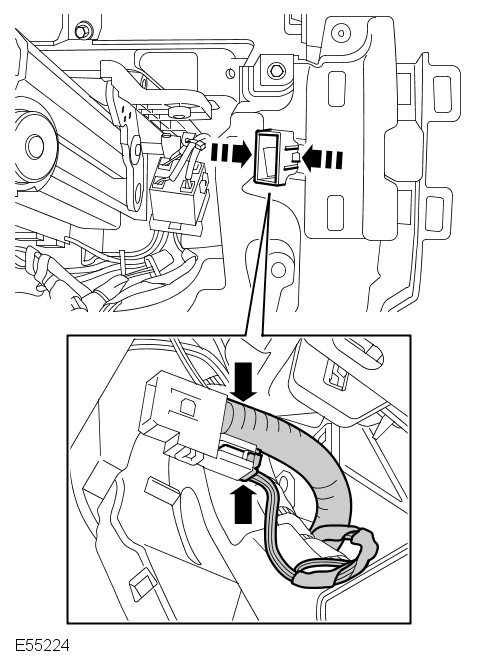

  7. E55224
    Remove the in-vehicle temperature sensor.
      • Release the 2 clips.
      • Disconnect the electrical connector.
      • Disconnect the hose.
Installation
  1. Install the in-vehicle temperature sensor.
      • Connect the hose.
      • Connect the electrical connector.
      • Secure with the clips.
  2. Install the steering column gaiter panel.
      • Secure with the clips.
      • Tighten the Torx screws.
  3. Install the steering column side trim panels.
      • Secure with the clips.
  4. Install the steering column shrouds.
      • Tighten the screws.
      • Secure with the clips.
  5. Install the instrument panel access panel.
      • Secure with the clips.
