Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems (G427713)

DESCRIPTION AND OPERATION

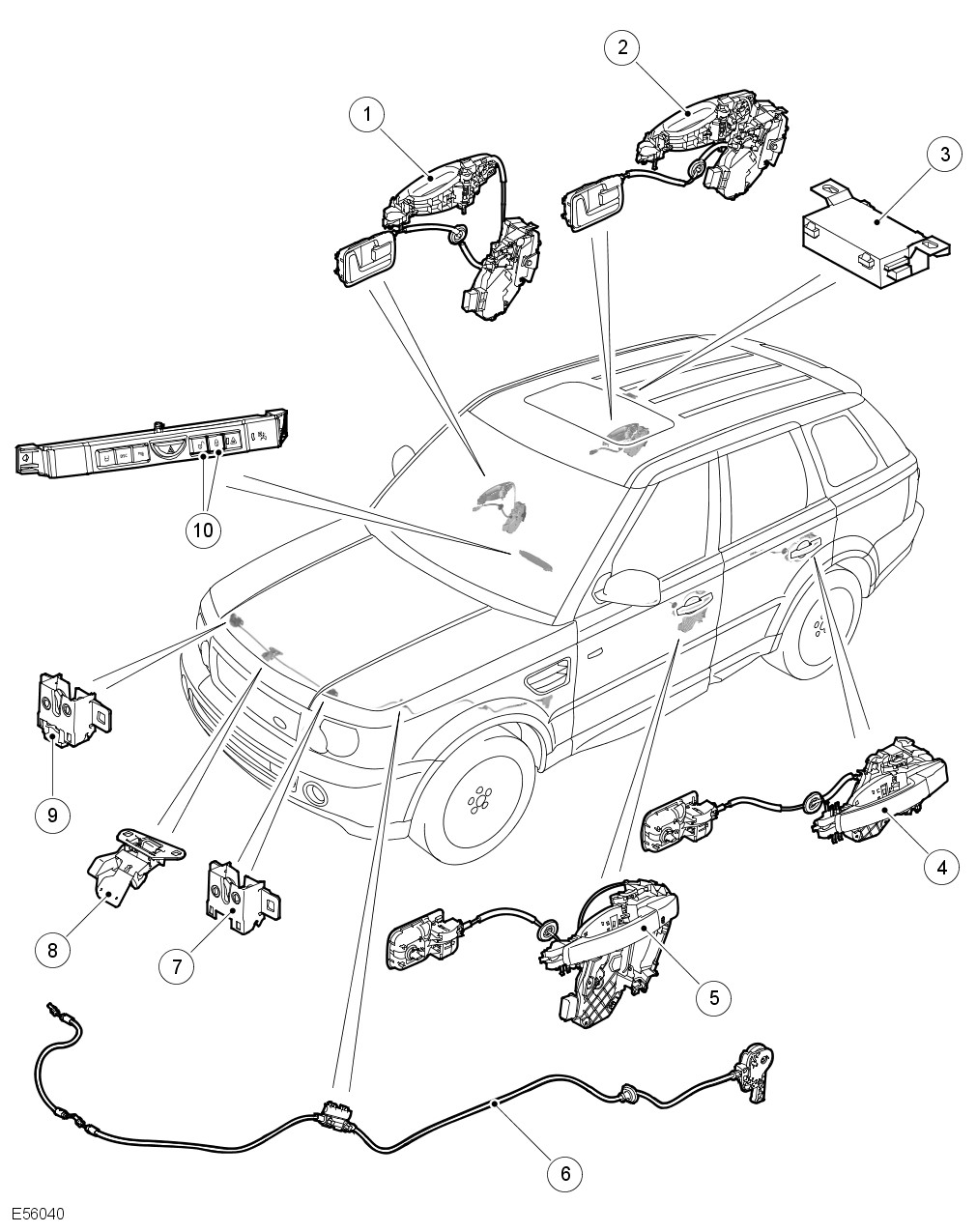

COMPONENT LOCATIONS - SHEET 1 OF 2
E56040

ItemDescription
1Right front door latch and handles
2Right rear door latch and handles
3RF (radio frequency) receiver
4Left rear door latch and handles
5Left front door latch and handles
6Hood release handle and release cables
7Left hood latch
8Hood safety catch
9Right hood latch and hood ajar switch
10CLS (central locking system) lock and unlock switches

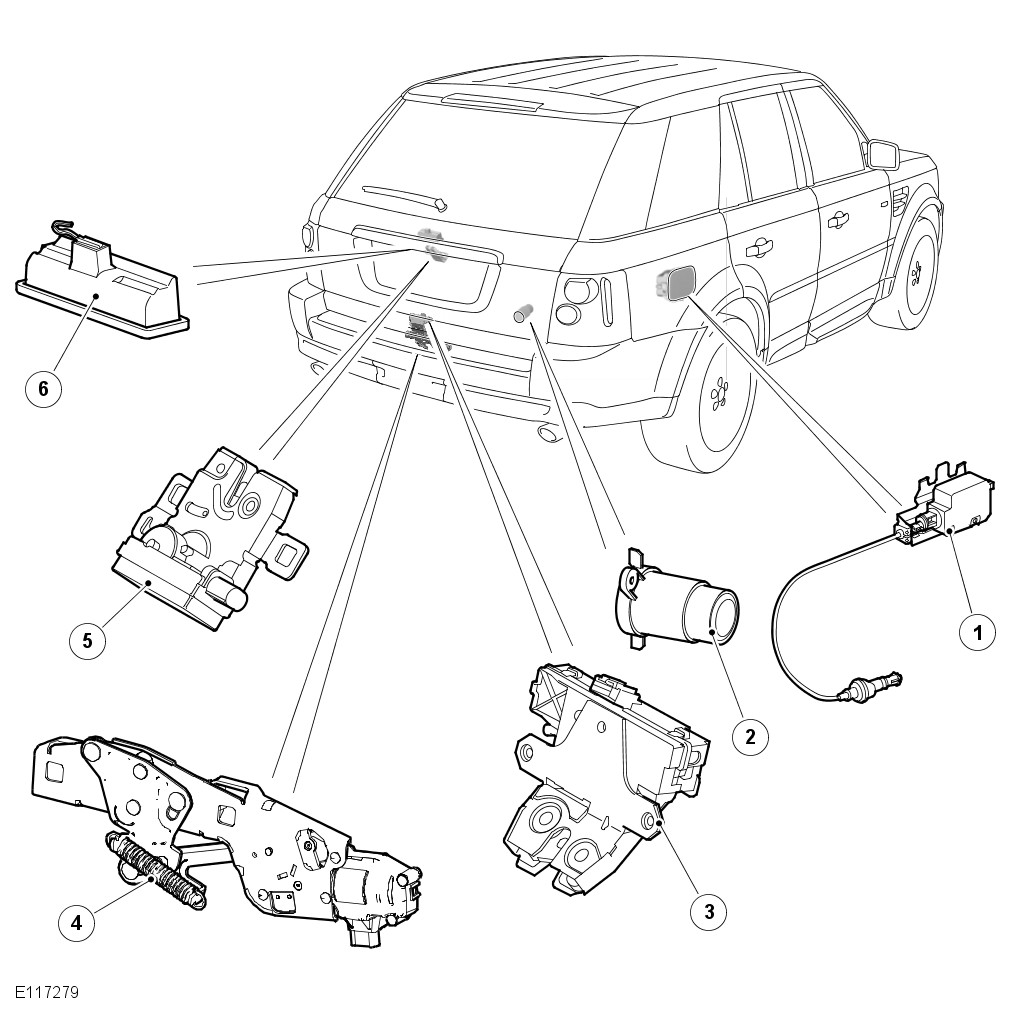

COMPONENT LOCATION - SHEET 2 OF 2
E117279

ItemDescription
1Fuel filler door lock actuator
2Tailgate release switch
3Tailgate latch
4Power striker unit
5Rear window latch
6Rear window release switch
GENERAL

The hinged panels on the vehicle are secured with latches and mating strikers. A safety catch is installed on the hood to prevent it from opening if the hood latches are open while the vehicle is moving.

The hood latches and the door latches are opened by pulling on the release handles. The rear window and tailgate latches are opened by pressing the release switches.

A remotely operated CLS controls the locking and unlocking of the door latches and the opening of the rear window and tailgate latches. In some markets, the CLS also locks and unlocks the fuel filler door. The CLS software is incorporated into the central junction box (CJB).

The left front exterior door handle incorporates a door lock, concealed under a removable cover. The door lock allows the left front door to be mechanically unlocked with the ignition key if the remote operation fails or there is a vehicle power failure. The CLS cannot be operated using the door lock.

The rear door latches incorporate child locks to enable the interior door handles to be disengaged from the latch mechanisms.

HOOD LATCHES

The hood is secured by two latches, installed under the hood locking platform, which engage with strikers on the hood. The hood safety catch is installed in the center of the hood leading edge and engages with a recess in the hood locking platform.

The hood latches are opened by a release handle on the lower part of the left-hand (LH) A pillar. Two hood release cables connect the hood latch release handle in series with the two hood latches. The two hood release cables are joined together by a connector block located on the front of the left inner fender.

DOOR LATCHES

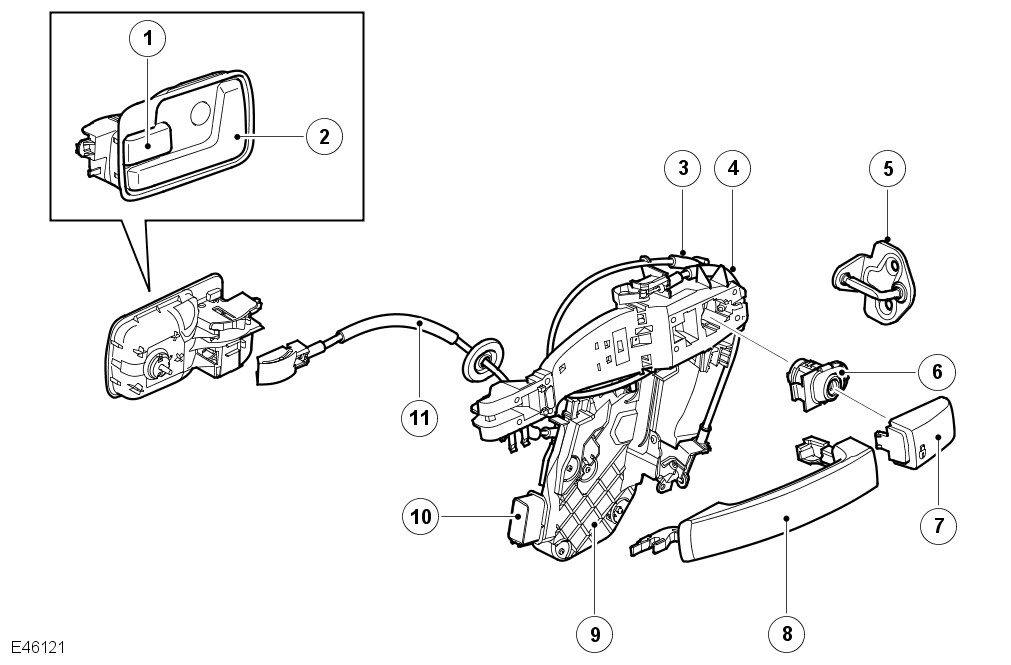

Door Latch and Handles
E46121

ItemDescription
1Locking button
2Interior door handle
3Door lock cable (front left door only)
4Exterior release cable
5Door striker
6Door lock (front left door only)
7Exterior door handle cap
8Exterior door handle
9Door latch
10Electrical connector
11Interior release cable

The door latches are installed in the rear edge of each door and each engage with a striker on the B or C pillar as appropriate.

Each door latch is a sealed unit that incorporates:

  • A lock motor.
  • A superlock motor (all except NAS (north American specification)).
  • A door ajar switch.

An electrical connector on each door latch provides the interface between the door latch and the CJB.

Both front door latches incorporate a mechanical anti slam lock feature.

Separate release cables are connected between the door latch and the interior door handle, and between the door latch and the exterior door handle. In the left front door, a third cable is connected between the door latch and the door lock in the exterior door handle.

The lock and superlock motors control the engagement of the latches with the release cables to lock and unlock the vehicle. When the vehicle is locked, the lock motors disengage the latches from the exterior release cables. When the vehicle is superlocked, the superlock motors also disengage the latches from the interior release cables. When the vehicle is unlocked, the CJB reverses the lock and superlock motors, to re-engage the release cables, by changing the polarity of their power and ground connections. To enable the SPE (single point entry) function, the lock motor in the driver door latch is operated by two dedicated connections with the CJB; the lock motors in the other three doors are all operated by two (other) common connections with the CJB. The superlock motors in all four door latches are all operated by two common connections with the CJB.

All of the interior door handles incorporate a locking button. Pressing the front of the locking button pushes the interior release cable, which causes the door latch to disengage from the exterior release cable. On the rear doors, the button also disengages the interior handle from the interior release cable.

Pulling the front of the locking button out again re-engages the interior door handle with the interior release cable, and also pulls on the interior release cable. This causes the door latch to re-engage with the exterior release cable.

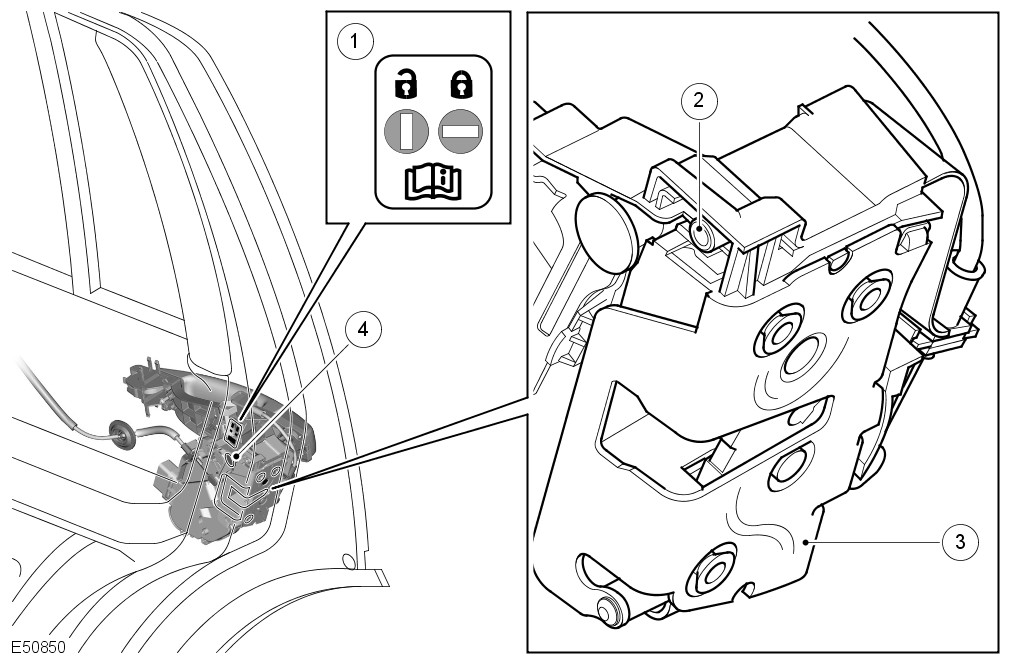

Child Locks

Child Lock and Label
E50850

ItemDescription
1Instruction label
2Child lock barrel
3Rear door latch
4Child lock aperture

Each rear door incorporates a child lock. The child lock controls the engagement of the interior release lever with the latch mechanism. When a child lock is set to the locked position, the interior release lever is disengaged from the latch mechanism, which prevents the door being opened with the interior door handle.

Each child lock is operated by installing the ignition key in an aperture in the inner skin of the rear door, where the ignition key engages with the child lock barrel on the door latch. Turning the ignition key sets the child lock to the locked or unlocked position, as detailed on the instruction label installed immediately above the child lock aperture.

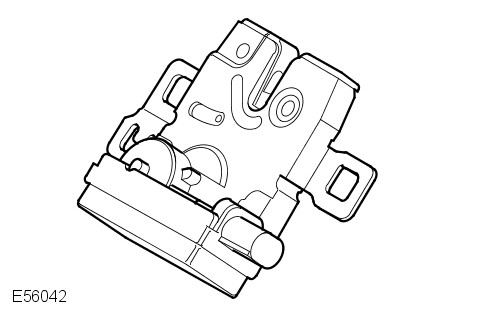

REAR WINDOW LATCH
E56042

The rear window latch is installed on a bracket in the tailgate, at the bottom of the window aperture, on the vehicle center-line.

The rear window latch is opened by an integral electric motor and slam closed by the striker installed on the encapsulation of the rear window. When a valid request to open the rear window is received, the CJB momentarily energizes the electric motor to open the latch cam and release the rear window.

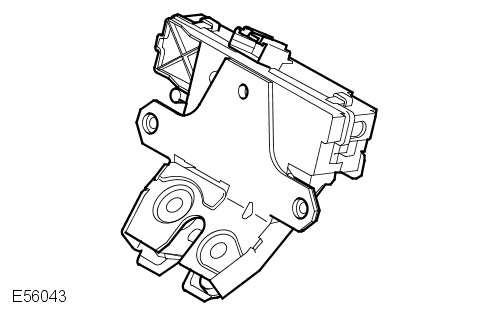

TAILGATE LATCH
E56043

The tailgate latch is installed in the bottom of the tailgate on the vehicle center-line.

The tailgate latch is opened by an integral electric motor and slam closed by the striker installed on the rear body inner panel. When a valid request to open the tailgate is received, the CJB momentarily energizes the electric motor to open the latch cam and release the tailgate.

The tailgate ajar warning lamp will only extinguish when the central junction box (CJB) receives signals from both the tailgate ajar switch and the power striker closed position switch.

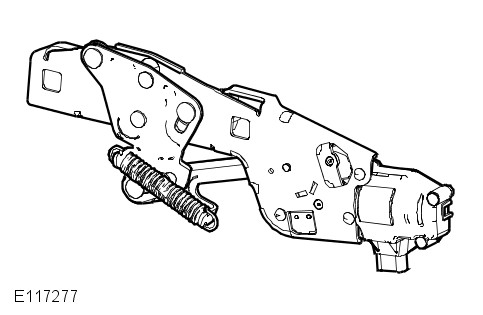

POWER STRIKER UNIT
E117277

The Power striker unit is installed in the vehicle body on the vehicle centre-line.

The power striker unit is designed to ease closing effort of the tailgate to the fully latched position.

The power striker is moved to the open position by an integral motor when the tailgate latch is released. When the tailgate is closed, (latch and striker latched, and ajar switch met) the power striker powers to the closed position, fully securing the tailgate.

The tailgate ajar warning lamp will only extinguish when the CJB receives signals from both the tailgate ajar switch and the power striker closed position switch.

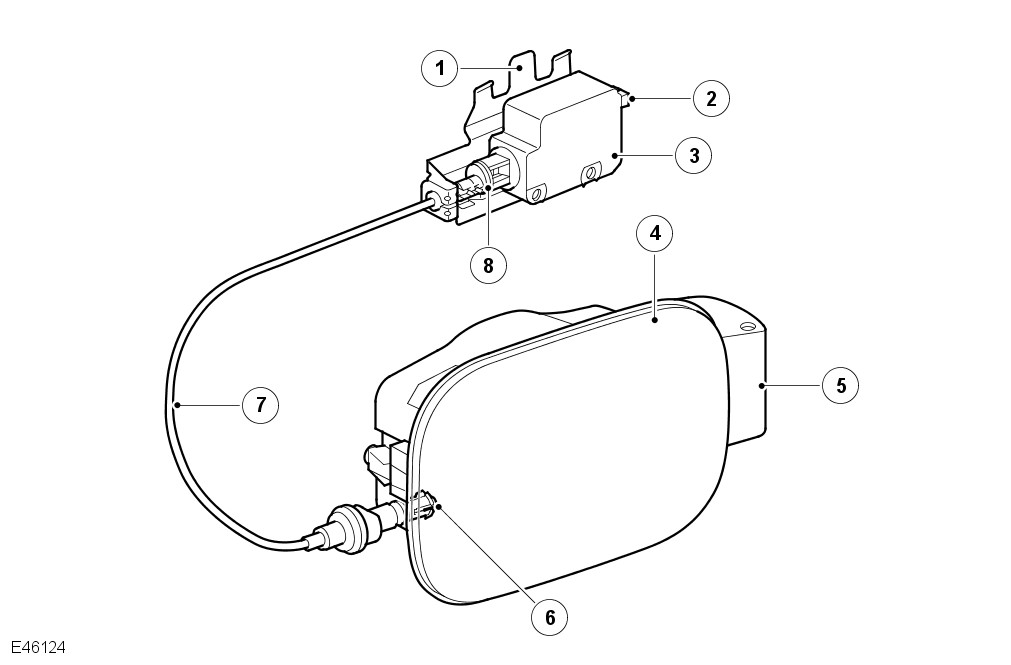

FUEL FILLER DOOR LOCK ACTUATOR (WHERE FITTED)
E46124

ItemDescription
1Actuator mounting bracket
2Electrical connector
3Actuator
4Fuel filler door
5Door mounting arm
6Pin
7Cable
8Actuating rod

The fuel filler door lock actuator extends and retracts a wire reinforced plastic pin to lock and unlock the fuel filler door. The actuator is installed on a bracket located behind the trim in the right rear quarter of the vehicle.

The pin is incorporated onto the end of the cable installed between the actuator and the fuel filler door assembly. In the locked position, the pin engages with a spigot on the door mounting arm.

The CJB changes the direction of drive of the actuator by changing the polarity of the power and ground connections.

In an emergency, the fuel filler door can be unlocked by manually retracting the actuating rod on the actuator. The actuating rod can be reached through the access cover in the rear quarter trim.

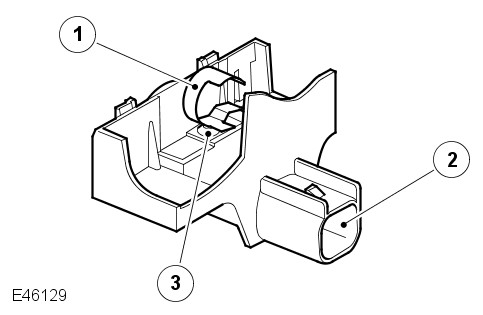

HOOD AJAR SWITCH
E46129

ItemDescription
1Leaf spring
2Electrical connector
3Switch

The hood ajar switch is attached to the bottom of the right hand hood latch. The hood ajar switch consists of a microswitch operated by a leaf spring which bears on the latch cam. When the hood latch opens, the latch cam presses on the leaf spring, which closes the microswitch to connect a ground to the CJB.

DOOR AJAR SWITCHES

A door ajar switch is incorporated in the latch of each door. When a door latch opens, the respective door ajar switch opens and disconnects a ground from the CJB.

REAR WINDOW AJAR SWITCH

The rear window ajar switch is incorporated in the rear window latch. When the rear window latch opens, the rear window ajar switch opens and disconnects a ground from the CJB.

TAILGATE AJAR SWITCH

The tailgate ajar switch is incorporated in the tailgate latch. When the tailgate latch opens, the tailgate ajar switch opens and disconnects a ground from the CJB.

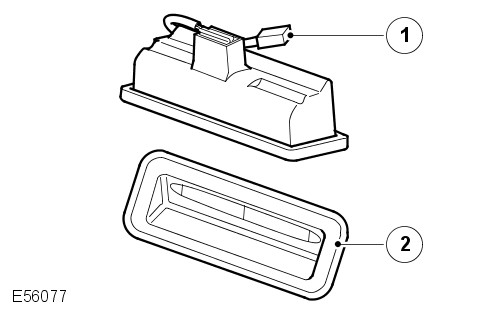

REAR WINDOW RELEASE SWITCH
E56077

ItemDescription
1Electrical connector
2Rubber cover

The rear window release switch is installed in the underside of the tailgate handle assembly. A rubber cover encloses the underside of the switch and a microswitch is installed in a boss on top of the switch. Pressing the rubber cover operates the microswitch and connects a ground to the CJB, which then momentarily energizes the electric motor of the rear window latch. The CJB only responds to the input when the tailgate is closed, the CLS is unlocked and the vehicle is stationary.

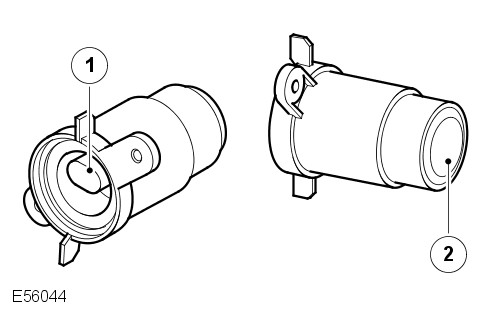

TAILGATE RELEASE SWITCH
E56044

ItemDescription
1Electrical connector
2Operating button

The tailgate release switch is a non latching switch installed in the bottom right corner of the tailgate. The tailgate release switch incorporates a spring loaded button and a microswitch. Pressing the button operates the microswitch and connects a ground to the CJB, which then momentarily energizes the electric motor of the tailgate latch. The CJB only responds to the switch input when the rear window is closed, the CLS is unlocked and the vehicle is stationary.

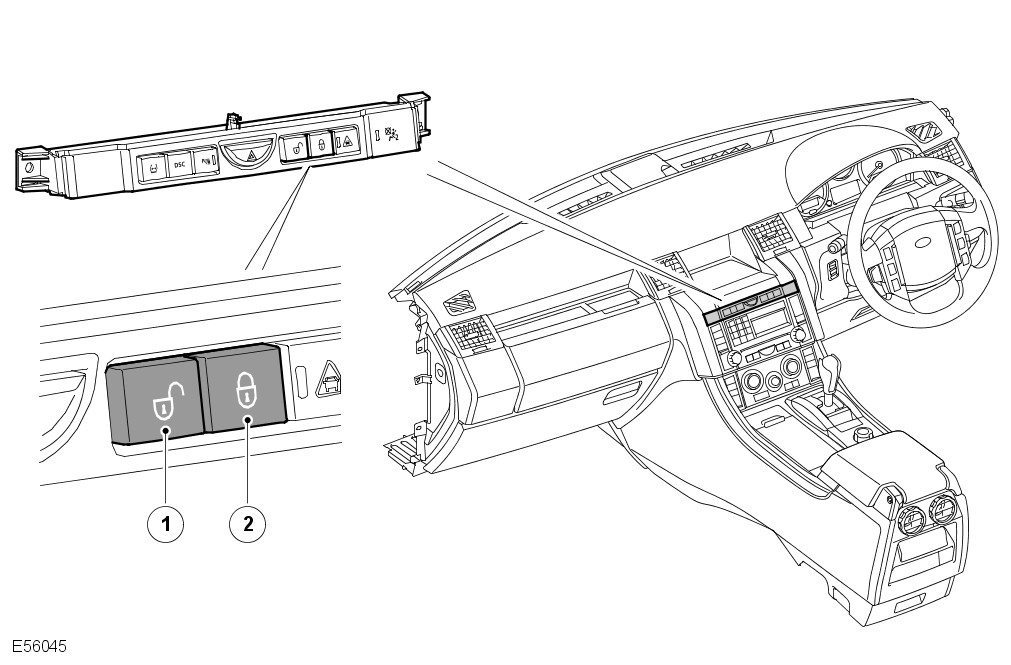

CLS SWITCHES
E56045

ItemDescription
1Unlock switch
2Lock switch

The CLS lock and unlock switches are non latching switches installed in the center switch pack of the instrument panel. The switches control the internal locking of the CLS. When the CLS lock or CLS unlock switch is pressed, a ground is connected to the CJB, which then energizes the lock or unlock motor in the door latches, as appropriate.

Pressing and holding the CLS lock switch and the CLS unlock switch simultaneously, for 3 seconds, releases the tailgate. This is an emergency release, in case the tailgate release switch is inoperative. The emergency release only operates if the vehicle is unlocked, or internally locked, and the vehicle speed is less than 8 km/h (5 mph).

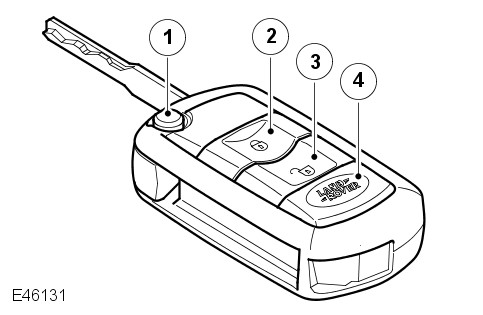

IGNITION KEY
E46131

ItemDescription
1Key release button
2Lock button
3Unlock button
4Personal button

The ignition key is of the folding blade type, which is released from the stowed position by pushing the key release button on the key head. The key head is a sealed unit that contains a PCB (printed circuit board) and a rechargeable battery. The PCB incorporates the electronics that generate RF signals for remote operation of the CLS and personalized feature. The PCB also incorporates the transponder for engine immobilization. For additional information, refer to: Anti-Theft - Passive (419-01B Anti-Theft - Passive, Description and Operation).

The battery is non serviceable, and recharges while the engine is running. If the battery charge is low, the remote operating range is reduced. The nominal life of the battery is approximately 14 years.

The key head has three buttons for operation of the CLS and the personalized feature, as follows:

  • A lock button, for locking and superlocking of the vehicle.
  • An unlock button, for unlocking the vehicle.
  • A personal button, for operating the personalization feature, which can be programmed to trigger a panic alarm, operate the headlamp courtesy delay, remotely raise and lower the suspension, or open the tailgate or rear window. Programming the personalization feature with a different function automatically overwrites the previous function. The personalization feature is programmed with the key removed from the ignition switch, as follows:
    • Panic alarm. Push and hold the personal button, then push and hold the hazard flasher switch. After a confirmation chime sounds on the instrument cluster speaker, release the personal button and the hazard flasher switch. Push and release the hazard flasher switch again, to cancel the hazard flashers.
    • Headlamp courtesy delay. Push and hold the personal button, then activate the main beam flash switch (pull switch towards you). After a confirmation chime sounds on the instrument cluster speaker, release the personal button and the main beam flash switch.
    • Suspension. Push and hold the personal button, then use the air suspension switch to select a different ride height. After a confirmation chime sounds on the instrument cluster speaker, release the personal button and the air suspension switch. Programming the personal button to operate the air suspension must take place within 60 seconds of turning the ignition off. The air suspension switch position is relayed to the CJB on the controller area network (CAN) systems, which power down 60 seconds after the ignition is switched off.
    • Tailgate. Push and hold the personal button, then press the tailgate release switch. The tailgate opens when the programming is completed. If the personal button was previously programmed for rear window release, the rear window must be shut, after the tailgate release switch has been pressed, to allow the new programming to be completed.
    • Rear window. Push and hold the personal button, then press the rear window release switch. The rear window opens when the programming is completed. If the personal button was previously programmed for tailgate release, the tailgate must be shut, after the rear window release switch has been pressed, to allow the new programming to be completed.

The ignition keys are externally identical for all markets, but differ in the frequency and power at which the RF transmitter in the key head operates. The RF transmitters operate at 433 MHz, 315 MHz or 315 MHz low power.

Each ignition key has a unique identification which is determined by the transponder in the key head. Every RF signal from the ignition key contains the identification code and a rolling code. The CJB checks the codes and only responds if the signal is from a valid ignition key. During vehicle production, the identification code of each ignition key supplied with the vehicle is programmed into the CJB, and the rolling codes in the ignition key and the CJB are synchronized. A total of 30 'slots' are available in the CJB software to allow for replacement and additional ignition keys. In service, T4 can be used to communicate with the CJB for the following:

  • Identify ignition key allocation within the CJB.
  • Enable new ignition keys.
  • Disable ignition keys.
  • Re-enable a previously disabled ignition key.

If the vehicle lockset is replaced, the keys supplied with the new lockset must be enabled and the old keys disabled.

If the rolling code of an ignition key loses synchronisation with the CJB, the remote operating functions will cease to operate. Synchronisation can be restored by starting the engine with the unsynchronized ignition key and allowing the engine to run for a minimum of 6 minutes.

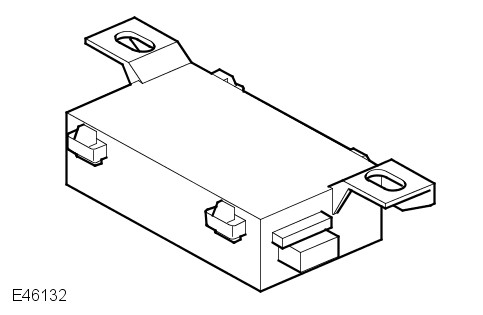

RF RECEIVER
E46132

The RF receiver converts the signals from the remote handset into digital messages and transmits them to the CJB. The RF receiver is installed above the headlining, on the cross-rail between the top of the B pillars. Operation of the RF receiver is powered by a permanent battery feed from the CJB.

CLS OPERATION

The CLS allows the doors and, where applicable, the fuel filler door, to be centrally locked and unlocked using the remote handset or the CLS switches. The CLS has two or three locking states, depending on the vehicle market: internally locked, externally locked and superlocked (all except NAS). Regardless of the CLS locking state, the left front door can always be mechanically unlocked using the ignition key in the door lock.

Configurable CLS features include automatic speed locking, automatic relocking and SPE. All vehicles incorporate crash unlocking.

The internally locked state is activated with a single press of the CLS lock switch. In the internally locked state:

  • The exterior door handles are disengaged from the latches, to prevent the doors being opened from outside the vehicle.
  • The CJB ignores inputs from the rear window release switch and the tailgate release switch, which prevents opening of the rear window and the tailgate.
  • The vehicle can be unlocked using a single press of the CLS unlock switch or a single press of the unlock button on the remote handset.

In all markets except NAS, a single press of the lock button on the remote handset will superlock the vehicle. A second press of the lock button on the remote handset, within 2 seconds of the first, changes the CLS to the externally locked state.

In NAS markets, a single press of the lock button on the remote handset activates the externally locked state. A second press of the lock button on the remote handset, within 2 seconds of the first, will arm the active anti-theft system. For additional information, refer to: Anti-Theft - Active (419-01A Anti-Theft - Active, Description and Operation).

In the externally locked state:

  • In addition to the conditions adopted for the internally locked state, the CJB also ignores inputs from the CLS lock and unlock switches.
  • The vehicle can be unlocked using a single press of the unlock button on the remote handset.

In the superlocked state:

  • In addition to the conditions adopted for the externally locked state, the CJB activates:
    • The superlock motors in the door latches, to disengage the interior door handles.
    • The fuel filler door lock motor (where fitted), to secure the fuel filler door.
  • The vehicle can be unlocked using a single press of the unlock button on the remote handset.

When the CLS lock switch is used, the CJB will internally lock the vehicle regardless of the position of the ignition switch, with or without the key in the ignition switch and with or without the engine running.

When the remote handset is used, the CJB will only externally lock or superlock the vehicle provided the ignition key has been removed from the ignition switch.

When the vehicle is externally locked or superlocked, the CJB flashes the turn signal lamps three times, for 500 milliseconds, with a 500 milliseconds pause between flashes. When the vehicle is unlocked using the remote handset, the CJB flashes the turn signal lamps once, for 3 seconds.

Mislock

A mislock occurs if the CJB receives an external lock or superlock request when any hinged panel is ajar, an invalid key is in the ignition switch or the repetition blocking limit for the door latches is reached. To indicate a mislock the CJB uses the horns to produce a 100 milliseconds 'chirp' and withholds flashing of the turn signal lamps.

If a mislock occurs because an invalid key is in the ignition switch or a hinged panel is ajar, the CJB still externally locks any doors that are closed. The closed doors are only externally locked, even if the original request was for superlocking.

If a mislock occurs because a hinged panel is ajar, when the hinged panel is subsequently closed the CJB maintains the current locking state until it receives another external lock or superlock request.

SPE

When SPE is enabled, an unlock command from the remote handset only unlocks the driver door and, where applicable, the fuel filler door. To unlock the remaining doors a second unlock command from the remote handset or the CLS unlock switch is required.

For each remote handset, SPE can be toggled on and off by pressing and holding the lock and unlock buttons on the remote handset at the same time, for 3 seconds, with the vehicle either locked or unlocked and the key removed from the ignition switch. Confirmation of the change to the SPE setting is provided by the vehicle locking and then unlocking in the selected mode.

Speed Dependant Locking

When speed dependant locking is enabled, the CJB internally locks the doors when the vehicle speed exceeds 8 km/h (5 mph) with the driver door closed and the engine running. If the vehicle slows down or stops, then increases to more than 8 km/h (5 mph) again, the CJB internally locks the doors again only if a door was opened while the vehicle speed was less than 8 km/h (5 mph). When the key is removed from the ignition switch, the CJB returns the vehicle to the previous unlocked state, i.e. unlocks all the doors, or just the driver door if SPE is enabled.

Speed dependant locking can be enabled and disabled in the customer settings menu. For additional information, refer to: Instrument Cluster (413-01 Instrument Cluster, Description and Operation).

Crash Unlocking

When the ignition switch is in position II, if a crash that triggers the air bags occurs the CJB unlocks all of the doors. After 3 seconds, the CJB unlocks the doors again, in case a lock button is pressed during the crash, by flailing limbs for example. The CJB is informed of the crash by a status message from the restraints control module, on the medium speed CAN bus, which changes from 'no crash' to 'crash'. The CLS will also perform crash unlocking if a 'no crash' status message is not received every 500 milliseconds.

The vehicle cannot be centrally locked again until the status message has been reset to 'no crash' by the restraints control module. For additional information, refer to: Airbag and Safety Belt Pretensioner Supplemental Restraint System (501-20B Supplementary Restraint System, Description and Operation).

Repetition Blocking

To protect the CLS motors and actuators from operating abuse, the CJB incorporates a repetition blocking feature, which limits the maximum operating rate of each motor and actuator. The lock motor in each door latch also incorporates thermal protection.

CLS Motor and Actuator Operating Parameters

Motor or ActuatorCurrent On Time, msMaximum Operations, Per MinuteNominal Operating Current, AStall Current, A
Rear Window Latch250 ± 251035
Tailgate Latch400 ± 251047.5
Fuel Filler Door Lock700 ± 10528
Door Superlock100 - 1101013.4
Door Lock100 - 11010310.9

Nominal operating current is at 23°C (73°F). Stall current is for 15 volts at –40°C (-40°F)

Lockout Protection

The vehicle cannot be locked or superlocked when the driver door is open. If an attempt is made to lock or superlock the vehicle, with the key lock or the remote handset, while the driver door is open, the CJB ignores the request.

Automatic Relock

If the CLS is unlocked, using the remote handset or the key lock, and a door or the tailgate is not opened, or the key is not put in the ignition switch, within 1 minute, the CJB automatically locks or superlocks the vehicle again, depending on the previously locked mode. Automatic relock is designed to prevent inadvertent unlocking and disarming the vehicle by accidentally pressing the unlock button on the remote handset.

Transportation Mode

When the vehicle is in the transportation mode, SPE is enabled and global unlocking with the remote handset or the key lock is disabled. The speed locking function is also disabled, but crash unlocking is retained. The transportation mode is engaged and disengaged using T4.

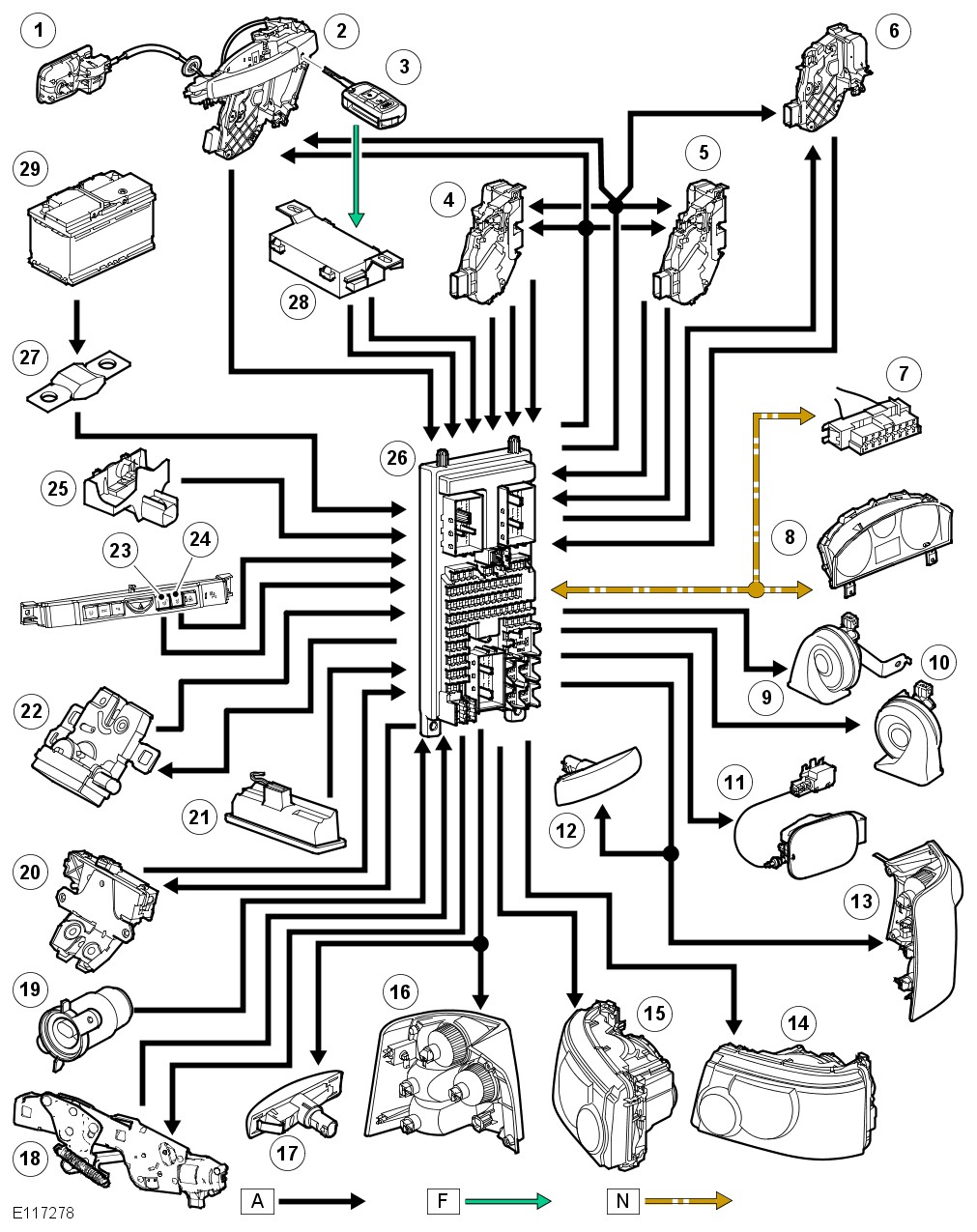

CLS CONTROL DIAGRAM
NOTE:

A = Hardwired connection; F = RF transmission; N = Medium speed CAN bus

E117278

ItemDescription
1Left front door latch (right-hand drive (RHD) version shown)
2Door lock
3Ignition key
4Left rear door latch
5Right rear door latch
6Right front door latch (RHD version shown)
7Diagnostic socket
8Instrument cluster
9Left horn
10Right horn
11Fuel filler door lock actuator
12Right side turn signal indicator lamp
13Right rear turn signal indicator lamp
14Right front turn signal indicator lamp
15Left front turn signal indicator lamp
16Left rear turn signal indicator lamp
17Left side turn signal indicator lamp
18Power Striker Unit
19Tailgate release switch
20Tailgate latch
21Rear window release switch
22Rear window latch
23CLS unlock switch
24CLS lock switch
25Hood ajar switch
26CJB
27Fusible link F17E, battery junction box (BJB)
28RF receiver
29Battery
