2007.0 Range Rover Sport (LS), 206-09A

Anti-Lock Control - Traction Control

Anti-Lock Brake System Control Module (G427471)

REMOVAL AND INSTALLATION
  • 70.25.12
  • Modulator - renew
  • Without Brembo
  • 0.70
  • USED WITHINS
Removal
CAUTION:

Make sure the ignition switch is in position 0.

  1. E47557
    Remove the cover.
  2. Disconnect the electrical connector.
  3. CAUTIONS:

    • Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

    • Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

    Disconnect the 6 brake tubes.
      • Position an absorbent cloth to collect fluid spillage.

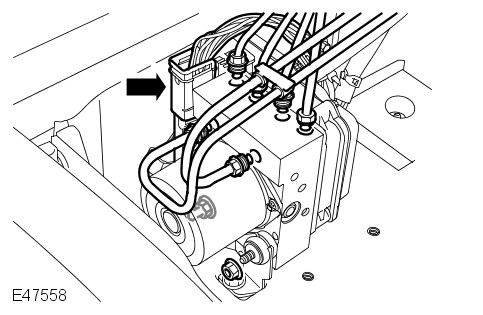

  4. E47558
    Remove the ABS module from the mounting bracket.
      • Loosen, but do not remove, the 2 nuts securing the ABS module to the bracket.
Installation
  1. NOTES:

    • Make sure the ABS module locating grommet is correctly seated in the bracket before installing the ABS module.

    • Make sure the ABS module locating pin is correcly located in the grommet, and the 2 front isolators are fully seated in the bracket slots.

    Install the ABS module.
      • Tighten the 2 ABS module retaining nuts to 8 Nm (6 lb.ft).
      • Remove the blanking caps from the ports.
      • Tighten the two M10 and three M12 brake tube unions to 15 Nm (11 lb.ft).
      • Tighten the M14 brake tube union to 17 Nm (13 lb.ft).
      • Connect the electrical connector.
      • Remove the ABS module from the mounting bracket.
  2. Using T4, bleed the braking system. For additional information, refer to: Brake System Bleeding - Vehicles With: Standard Brakes (206-00 Brake System - General Information, General Procedures) / Brake System Bleeding - Vehicles With: High Performance Brakes (206-00 Brake System - General Information, General Procedures).
  3. Install the cover.
  4. If a new ABS module has been installed, interrogate the ABS system using T4.
