Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-07

Power Brake Actuation

Brake Booster (G427413)

DESCRIPTION AND OPERATION

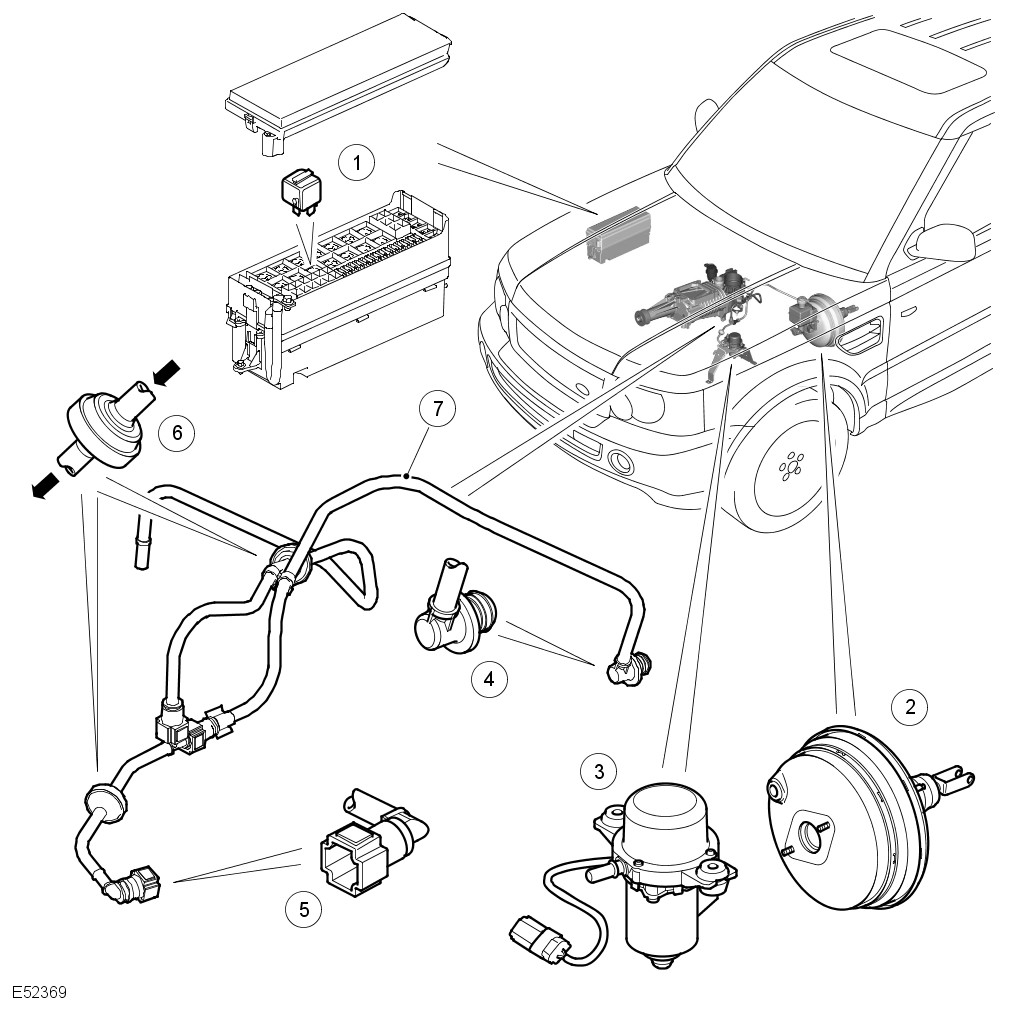

COMPONENT LOCATIONS - 4.2L
NOTE:

left-hand drive (LHD) shown, right-hand drive (RHD) similar

E52369

ItemDescription
1Vacuum pump relay
2Brake booster
3Vacuum pump
4Vacuum pipe connection to brake booster
5Vacuum pipe connection to vacuum pump
5Check valve
7Vacuum pipes

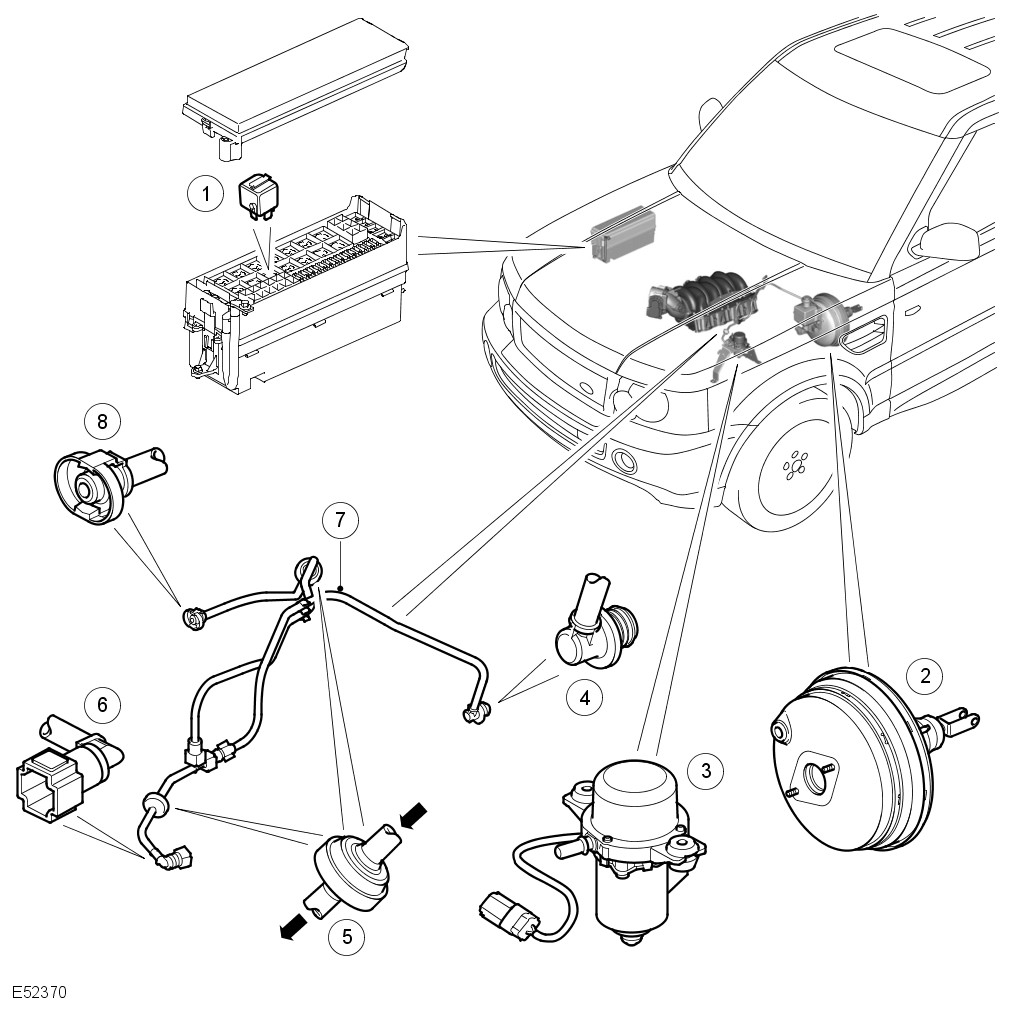

COMPONENT LOCATIONS - 4.4L
NOTE:

LHD shown, RHD similar

E52370

ItemDescription
1Vacuum pump relay
2Brake booster
3Vacuum pump
4Vacuum pipe connection to brake booster
5Check valve
6Vacuum pipe connection to vacuum pump
7Vacuum pipes
8Vacuum pipe connection to inlet manifold

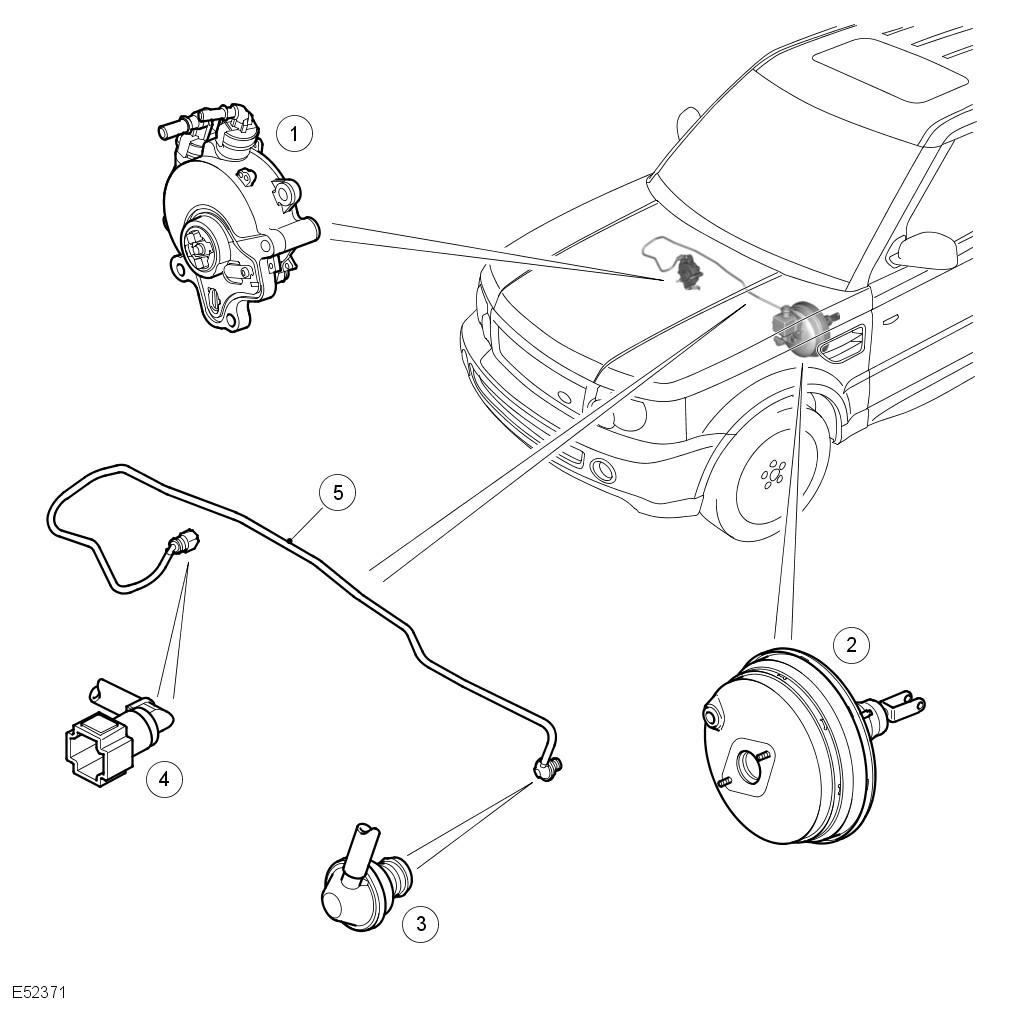

COMPONENT LOCATIONS - 2.7L DIESEL
NOTE:

LHD shown

E52371

ItemDescription
1Vacuum pump
2Brake booster
3Vacuum pipe connection to brake booster (includes check valve)
4Vacuum pipe connection to vacuum pump
5Vacuum pipes
GENERAL

Power assistance for the brakes is provided by a vacuum operated brake booster. On petrol models, the vacuum is produced by the intake manifold and an electric vacuum pump. On diesel models, the vacuum is produced by an engine driven vacuum pump.

VACUUM PIPES

Plastic vacuum pipes connect the brake booster to the vacuum source. Check valves are incorporated into the vacuum pipes. On petrol models there are two in-line check valves, to maintain the vacuum in the brake booster when the throttle is open and the vacuum pump is not running, and prevent fuel vapor entering the brake booster. On diesel models there is a single check valve integrated into the vacuum pipe connection with the brake booster, to maintain the vacuum in the brake booster when the vacuum pump is operating at less than the optimum.

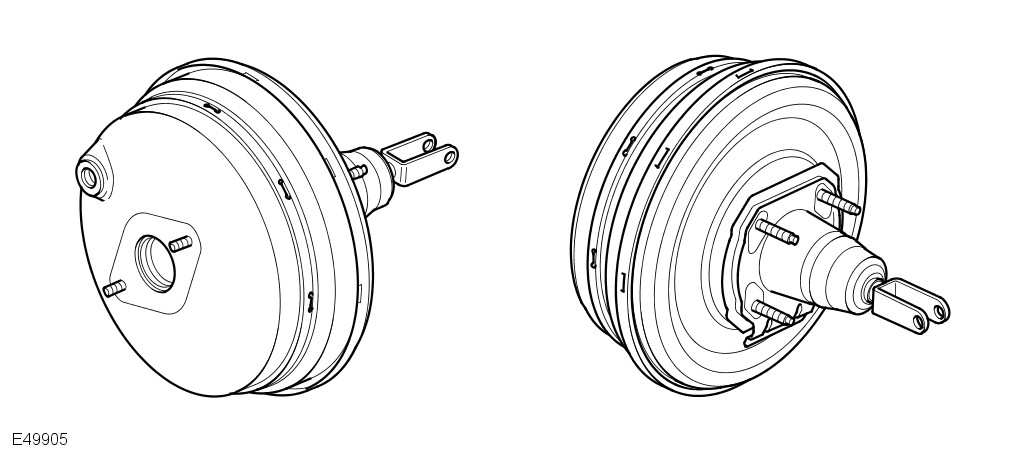

BRAKE BOOSTER
E49905

The brake booster is installed in the driver side of the engine compartment, on the engine bulkhead.

The brake booster is a dual diaphragm unit with a boost ratio of 7.0 : 1 on 4.4L and 2.7L Diesel models and 8.0 : 1 on 4.2L models. The input push rod is connected to the brake pedal. The output push rod locates in the primary piston of the brake master cylinder. A vacuum pipe, connected to the front face of the housing, connects the brake booster to the intake manifold and electric vacuum pump (petrol models) or the engine driven vacuum pump (diesel models).

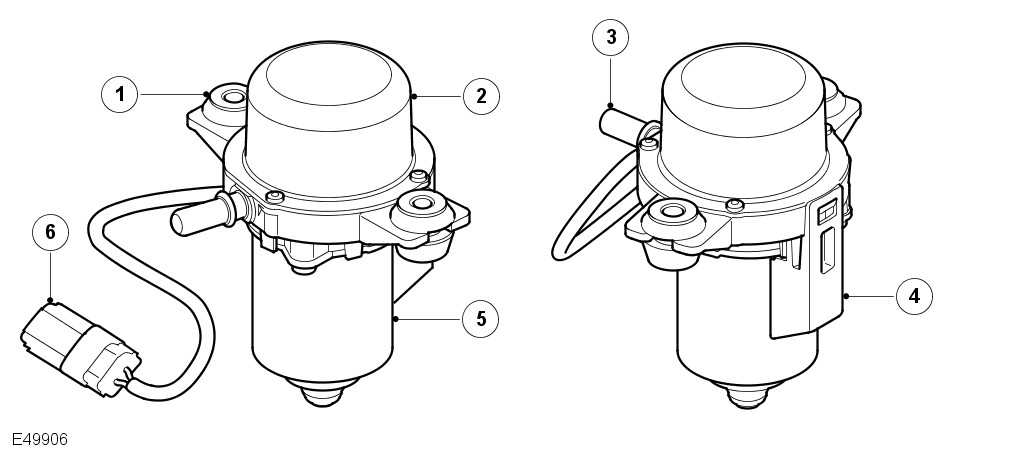

VACUUM PUMP (4.2L AND 4.4L)
E49906

ItemDescription
1Anti-vibration mount
2Pump cover
3Vacuum pump inlet
4Rubber shroud for exhaust port
5Motor cover
6Electrical connector

On petrol models the electric vacuum pump supplements the main vacuum supply from the engine manifold.

The vacuum pump is installed on a mounting bracket in the front left corner of the engine compartment. Two anti-vibration mounts on the vacuum pump are located on studs on the mounting bracket and secured with nuts.

The vacuum pump consists of a radial vane pump driven by an electric motor. The rotor and vanes of the pump are made from a self-lubricating carbon based material. A stub pipe is installed in the inlet of the pump to provide a connection point for the vacuum pipe from the brake booster. A second stub pipe, which is covered by a rubber shroud, is installed in the outlet from the pump.

Operation of the vacuum pump is controlled by the engine control module (ECM), which uses the brake vacuum pump relay in the battery junction box (BJB) to switch power to the vacuum pump. The ECM controls the time for which the vacuum pump is switched on and has in-built safeguards to protect the pump from overuse, e.g. continuous running is not allowed so a minimum delay time is specified between applications.

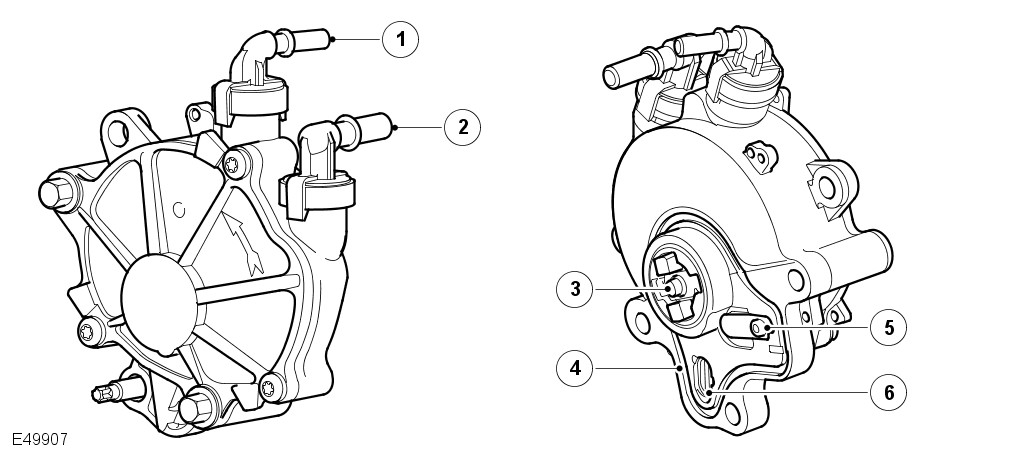

VACUUM PUMP (2.7L DIESEL)
E49907

ItemDescription
1Vacuum connection (not used)
2Vacuum connection for brake booster
3Drive dog
4Seal
5Oil inlet port
6Oil return/air vent

A vacuum pump is installed on diesel models as the air inlet system does not produce sufficient vacuum for satisfactory operation of the brake booster.

The vacuum pump is a radial vane pump which is attached to the rear of the right-hand (RH) cylinder head and driven at half engine speed by the exhaust camshaft. The vacuum pipe from the brake booster connects to an elbow on the rim of the vacuum pump.

The vacuum pump is lubricated and cooled by engine oil supplied to a port in the front face of the vacuum pump from a gallery in the cylinder head. The oil return is through a vent in the front face of the pump into a drain cavity in the cylinder head. Air extracted from the brake booster is vented into the drain cavity with the returning engine oil.

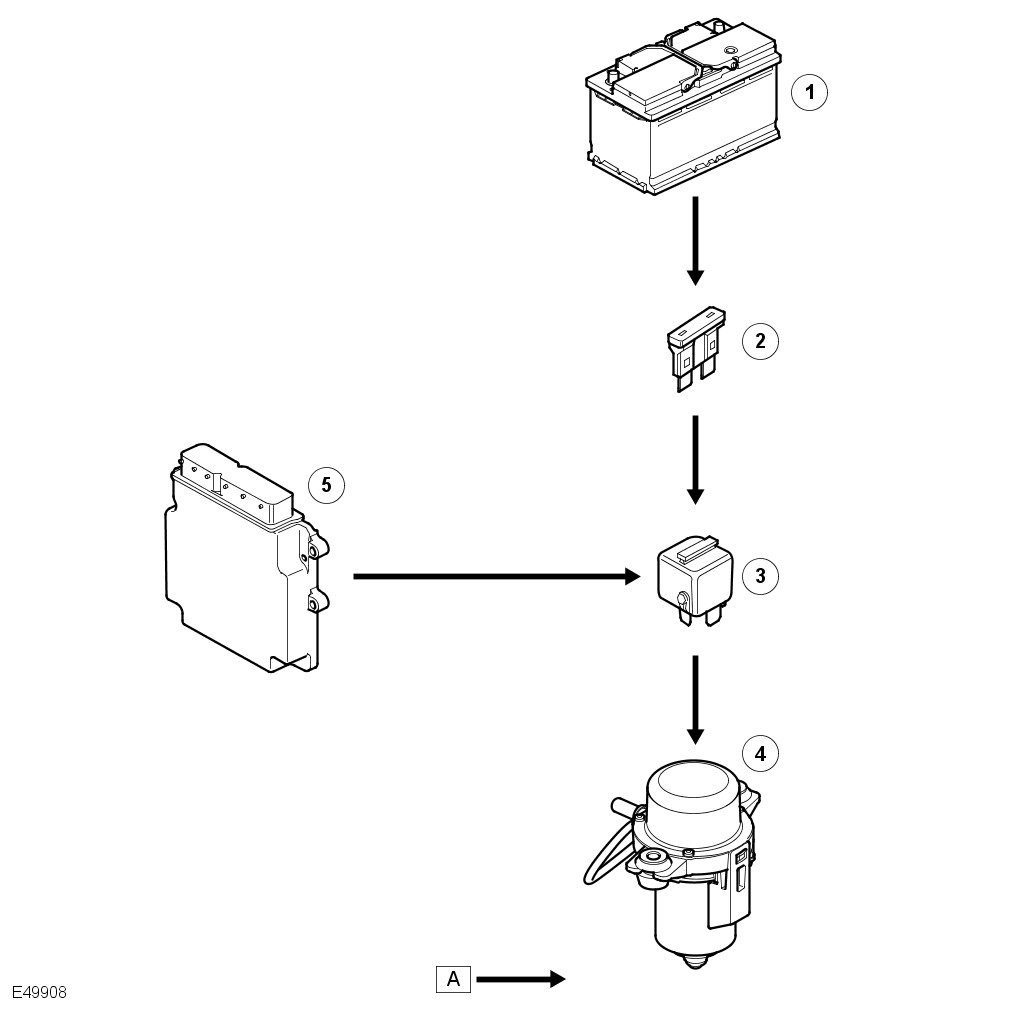

VACUUM PUMP CONTROL DIAGRAM (4.2L AND 4.4L)
NOTE:

A = Hardwired connection

E49908

ItemDescription
1Battery
2Fuse 24E, BJB
3Vacuum pump relay
4Vacuum pump
5ECM
