Published: 11-May-2011
2007.0 Range Rover Sport (LS), 412-01

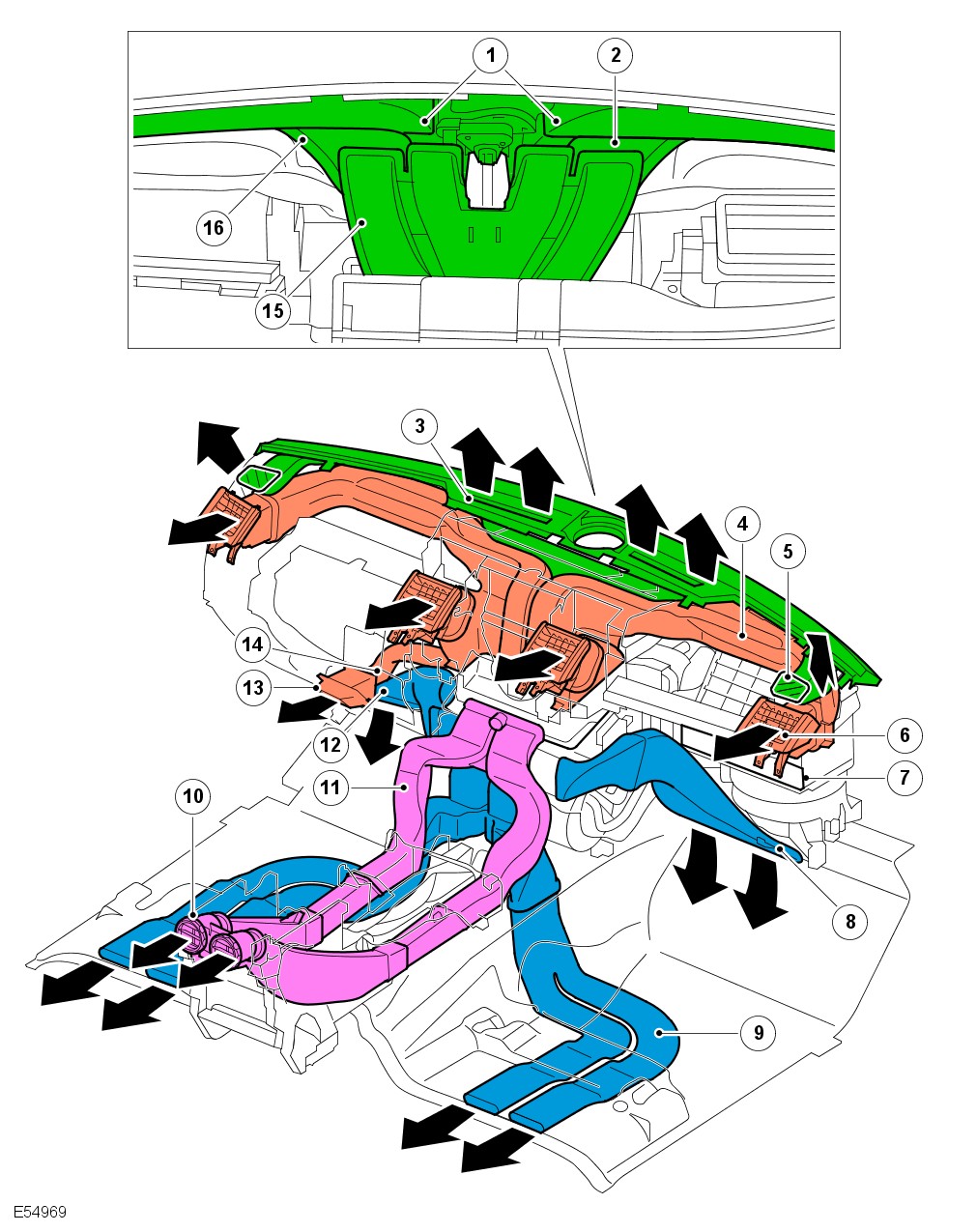

Air Distribution and Filtering (G427255)
left-hand drive (LHD) installation shown, right-hand drive (RHD) similar
| Item | Description |
|---|---|
| 1 | Side window ducts |
| 2 | Windshield duct |
| 3 | Windshield vent |
| 4 | Instrument panel register duct |
| 5 | Side window vent |
| 6 | Instrument panel register |
| 7 | Cabin air filter |
| 8 | Front passenger footwell duct |
| 9 | Second row footwell duct |
| 10 | Second row register |
| 11 | Second row register duct |
| 12 | Driver footwell duct |
| 13 | Driver lap register |
| 14 | Driver lap register duct |
| 15 | Heater outlet manifold |
| 16 | Windshield duct |
The air distribution and filtering system controls the distribution and quality of air supplied to the vehicle interior. The system consists of:
- Air ducts.
- Air registers and vents.
- A cabin air filter.
The air ducts distribute the air from the heater to the various registers and air vents around the vehicle interior. The air ducts for the instrument panel registers, the driver lap register and the second row registers are connected to the heater outlet manifold on top of the heater. The air ducts for the front and second row footwells are connected direct to outlet ports on the heater. The air ducts for the windshield vents and the side window vents form part of the structure of the instrument panel.
The air registers allow occupants to control the flow and direction of air from the air ducts. The driver lap register has moveable vanes to regulate the flow and direction of the air. The instrument panel and second row registers each have a thumbwheel to regulate flow, and moveable vanes to control direction.
The air vents are fixed outlets either integrated into the end of the air duct or installed in the trim panel connected to the air duct.

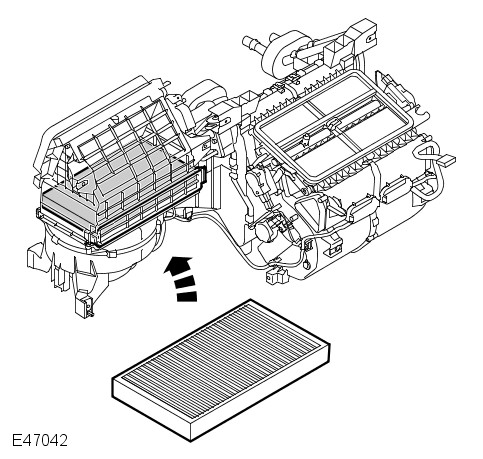

The cabin air filter is a combined pollen and odor filter installed in the air inlet duct. The filter removes particulates and unpleasant odors from the fresh and recirculated air entering the blower.
