2007.0 Range Rover Sport (LS), 501-08

Exterior Trim and Ornamentation

Rear Spoiler (G426826)

REMOVAL AND INSTALLATION
Removal
CAUTION:

Always protect paintwork and glass when removing exterior components.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

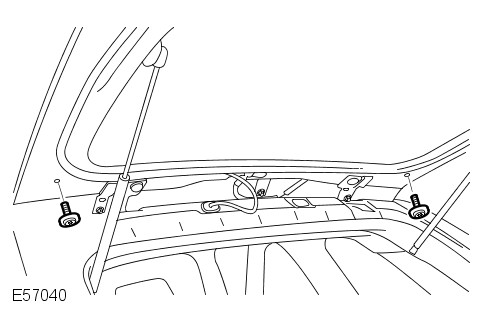

  2. E57040
    Open the liftgate glass.
      • Remove the 2 Torx bolts.
      • Close the liftgate glass.

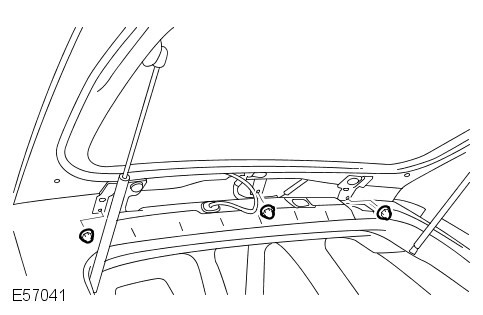

  3. E57041
    Open the liftgate.
      • Remove the 3 nuts.
      • Close the liftgate.

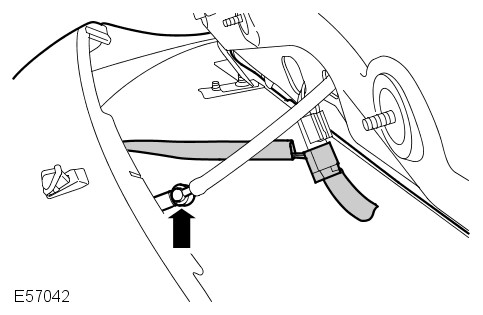

  4. E57042
    Remove the rear spoiler.
      • Disconnect the electrical connector.
      • Disconnect the washer jet hose.
  5. NOTE:

    Do not disassemble further if the component is removed for access only.

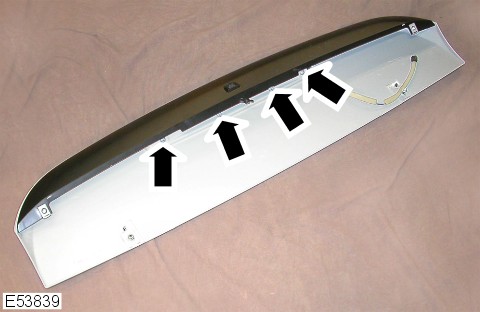

    E53839
    Remove the CHMSL .
      • Remove the 4 Torx screws.
  6. Remove the 2 clips.

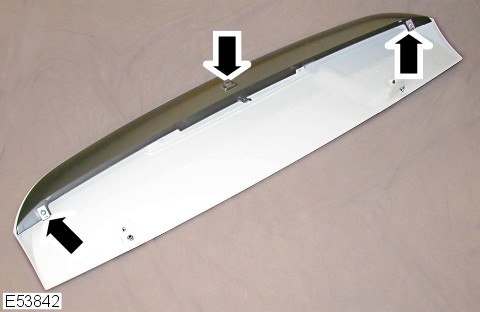

  7. E53842
    Remove the washer jet.
      • Release the clip.
Installation
  1. Install the high mounted stoplamp.
      • Install the Torx screws.
  2. Install the washer jet.
  3. Install the 2 clips.
  4. Install the spoiler.
      • Connect and secure the electrical connector.
      • Connect the washer jet hose.
      • Tighten the nuts to 10 Nm (7 lb.ft).
      • Tighten the Torx bolts to 25 Nm (18 lb.ft).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
