Published: 11-May-2011

2007.0 Range Rover Sport (LS), 205-02

Rear Drive Axle/Differential

Differential Draining and Filling (G426510)

GENERAL PROCEDURES
  • 51.25.02
  • Rear axle - drain and refill
  • All Derivatives
  • 0.20
  • USED WITHINS
CAUTION:

Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.

NOTE:

The only way to check the fluid level in the differential is to drain all the fluid out and refill with the correct quantity, shown in the specification section.For additional information, refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications).

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. CAUTION:

    Do not undo or remove the large protruding hexagon on the differential casing.

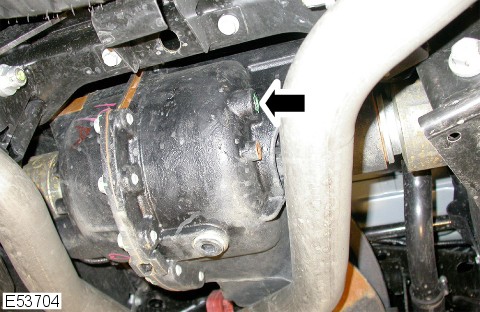

    E53704
    Remove the differential case lubricant filler plug.
      • Clean the area around the lubricant filler plug.
      • Position container to collect fluid loss.

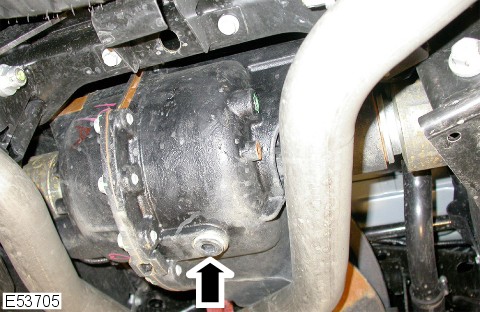

  3. E53705
    Drain the differential lubricant.
      • Clean the area around the drain plug.
      • Remove the fluid drain plug.
  4. CAUTION:

    There has been 2 different types of fixings used for the drain plug. Note the type and make sure the correct torque is applied, see below.

    Install the lubricant drain plug.
      • Clean the drain plug.
      • Up to differential serial number 254325: Tighten the hexagonal drive drain plug to 54 Nm (40 lb.ft).
      • From differential serial number 254326: Tighten the 3/8'' square drive drain plug to 28 Nm (21 lb.ft).
  5. CAUTIONS:

    • There have been 2 different types of fixings used for the drain plug. Note the type and differential serial number, and make sure the correct torque is applied, see below.

    • Make sure the correct specification and quantity of oil is used.

    Fill the differential with the correct amount of lubricant. For additional information, refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications).
  6. Install the differential filler plug.
      • Clean the filler plug.
      • Tighten the filler plug to 34 Nm (25 lb.ft).
