2007.0 Range Rover Sport (LS), 501-10

Seating

Rear Seat (G424626)

REMOVAL AND INSTALLATION
Removal
NOTES:

  • Left-hand shown, right-hand similar.

  • The Torx bolts can be re-used.

  1. Release the rear seat.
      • Fold the LH seat cushion forward.
      • Remove the 7 Torx bolts.
      • Fold down the rear seat backrest.
      • Disconnect the electrical connector.
  2. E57156
    With assistance, remove the rear seat assembly.
  3. NOTE:

    Do not disassemble further if the component is removed for access only.

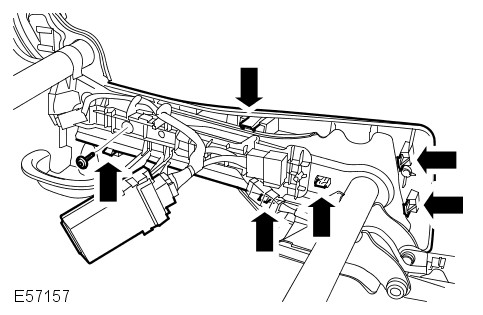

    E57157
    Remove the rear seat cushion side trim.
      • Release the seat heater control module.
      • Remove the Torx screw.
      • Release the 6 clips.

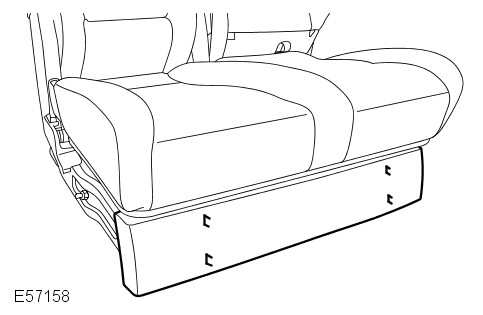

  4. E57158
    Remove the seat frame trim.
      • Release the 4 clips.
Installation
  1. Install the seat frame trim.
      • Carefully secure the clips.
  2. Install the rear seat cushion side trim.
      • Carefully secure the clips.
      • Fit and tighten the Torx screw.
      • Install the seat heater control module.
  3. With assistance, install the rear seat assembly.
      • Position the seat on the dowels.
  4. Secure the rear seat.
      • Return the seat backrest to the upright position.
      • Tighten the Torx bolts to 40 Nm (30 lb.ft).
      • Fold the seat cushion rearwards.
      • Connect and secure the electrical connector.
