2007.0 Range Rover Sport (LS), 501-09

Rear View Mirrors

Exterior Mirror (G423318)

REMOVAL AND INSTALLATION
  • 76.11.10
  • Exterior mirror assembly (electrically operated) - LH/each - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal

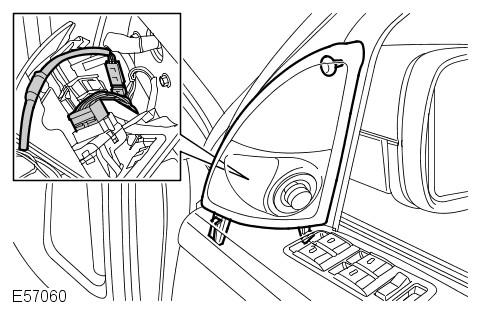

  1. E57060
    Remove the cheater panel.
      • Carefully release the 3 clips.
      • Disconnect the 2 electrical connectors.

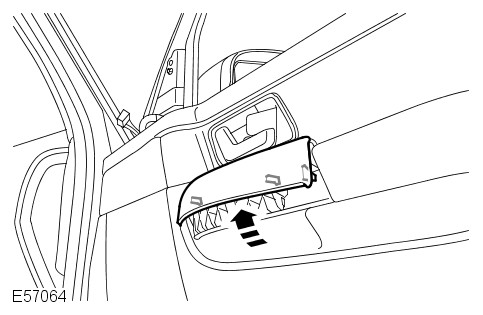

  2. E57064
    Starting at the lower edge, carefully remove the grab handle cover.
      • Release the 2 clips.

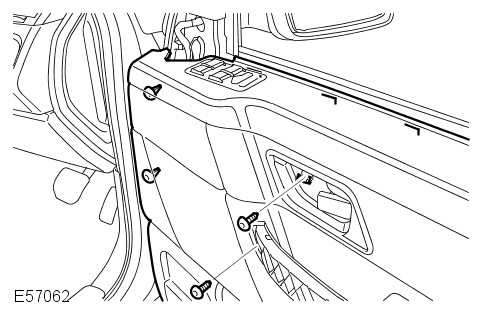

  3. E57062
    Release the forward upper corner of the front door trim panel.
      • Release the screw cover.
      • Remove the 2 screws.
      • Release the 5 clips.

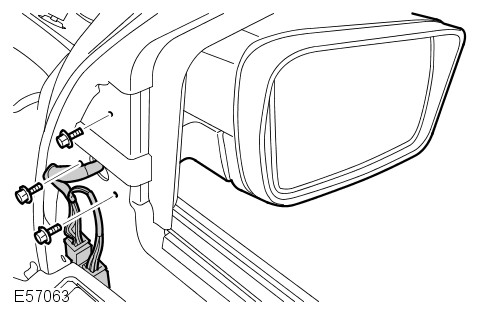

  4. E57063
    Remove the exterior rear view mirror.
      • Disconnect the electrical connectors.
      • Remove the 3 bolts.
Installation
  1. Install the exterior rear view mirror.
      • Tighten the bolts to 6 Nm (4 lb.ft).
      • Connect the electrical connectors.
  2. Secure the front door trim panel.
      • Secure the clips.
      • Install the screws.
      • Install the screw cover.
      • Install the grab handle cover.
  3. Install the grab handle cover.
  4. Install the cheater panel.
      • Connect the electrical connectors.
      • Secure the clips.
