Published: 11-May-2011

2007.0 Range Rover Sport (LS), 211-05

Steering Column Switches

Left Steering Column Multifunction Switch (G410843)

REMOVAL AND INSTALLATION
  • 86.65.55
  • Switch - Combined Direction Indicator and Headlamp - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Fully extend the steering column for access.
  2. E50851
    Remove the steering column upper shroud.
      • Release the 6 clips.
  3. E52017
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.

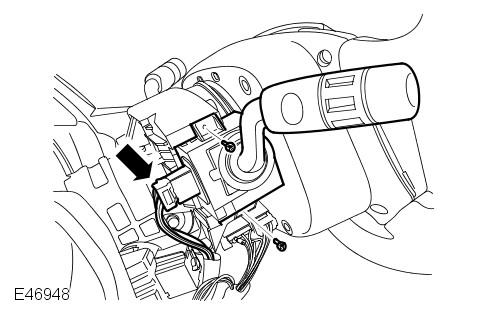

  4. E46948
    Remove the steering column multifunction switch.
      • Disconnect the electrical connector.
      • Remove the 2 screws.
Installation
  1. To install, reverse the removal procedure.
