Published: 11-May-2011

2007.0 Range Rover Sport (LS), 211-05

Steering Column Switches

Ignition Switch (G410573)

REMOVAL AND INSTALLATION
  • 86.65.02
  • Switch - ignition/starter - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Fully extend the steering column for access.

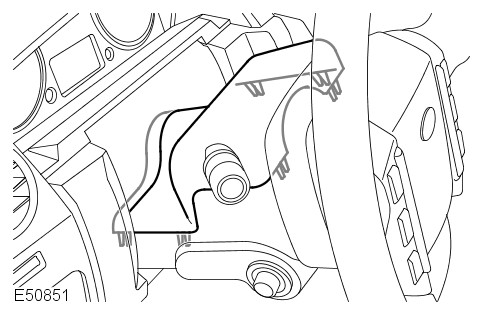

  2. E50851
    Remove the steering column upper shroud.
      • Release the 6 clips.

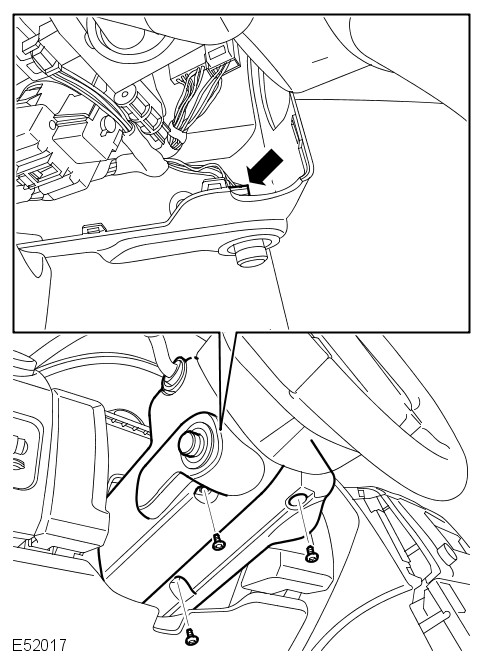

  3. E52017
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.
  4. CAUTION:

    The ignition key must be removed prior to the removal of the ignition switch.

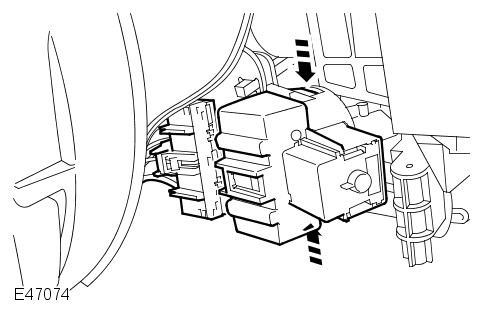

    E47074
    Remove the ignition switch.
      • Disconnect the electrical connector.
      • Depress the 2 clips.
Installation
  1. Install the ignition switch.
      • Secure with the clips.
      • Connect the electrical connector.
  2. Install the steering column shrouds.
      • Connect the electrical connector.
      • Tighten the Torx screws.
      • Secure the clips.
