2007.0 Range Rover Sport (LS), 303-03D

Supercharger Cooling

Radiator (G407631)

REMOVAL AND INSTALLATION
Removal
NOTE:

Always protect the cooling pack elements to prevent accidental damage.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the radiator assembly. For additional information, refer to: Radiator (303-03A Engine Cooling - V8 S/C 4.2L Petrol, Removal and Installation).

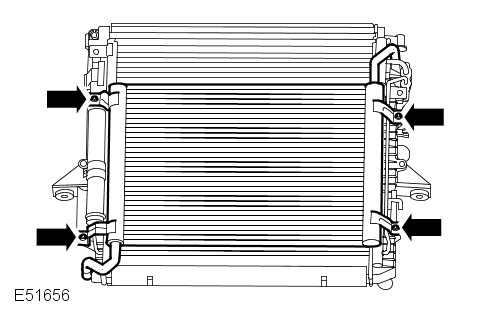

  3. E51656
    Remove the supercharger radiator.
      • Remove the 4 bolts.
Installation
  1. Install the supercharger radiator.
      • Install the bolts and tighten to 6 Nm (4 lb.ft).
  2. Install the radiator assembly. For additional information, refer to: Radiator (303-03A Engine Cooling - V8 S/C 4.2L Petrol, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
