Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-03D

Supercharger Cooling

Coolant Pump (G407630)

REMOVAL AND INSTALLATION
  • 26.50.01
  • Coolant Pump - Renew
  • TDV8
  • 1.30
  • USED WITHINS
Removal
WARNING:

Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.

CAUTION:

Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

NOTE:

This procedure covers the removal and installation of the supercharger auxiliary coolant pump.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the engine cover. For additional information, refer to: Engine Cover - V8 S/C 4.2L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

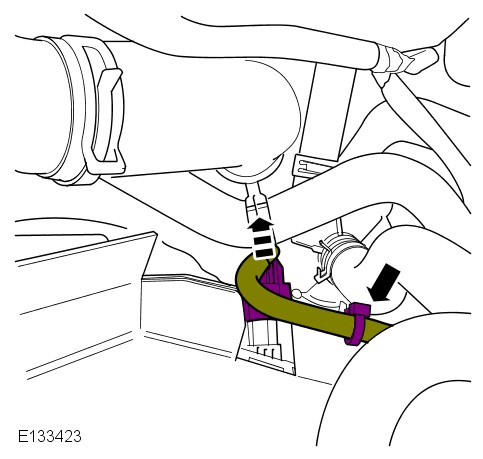

  3. E133423
    Release and disconnect the cooling fan electrical connector.
      • Position the wiring harness aside.

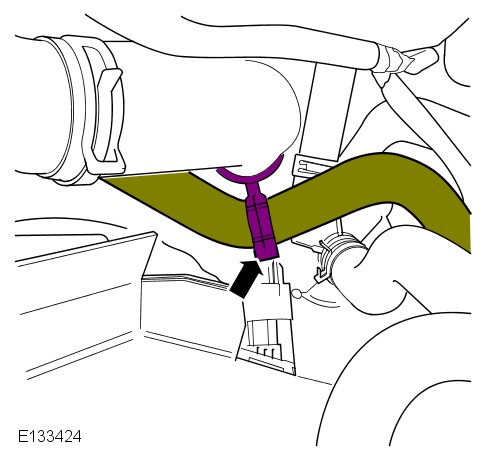

  4. E133424
    Release the clip securing the coolant hose.
      • Position aside.
  5. WARNING:

    Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

    CAUTION:

    Make sure that all openings are sealed. Use new blanking caps.

    Disconnect the 2 coolant pump hoses.
      • Clamp the relevant hoses, to minimise the coolant loss.
      • Release the 2 clips.

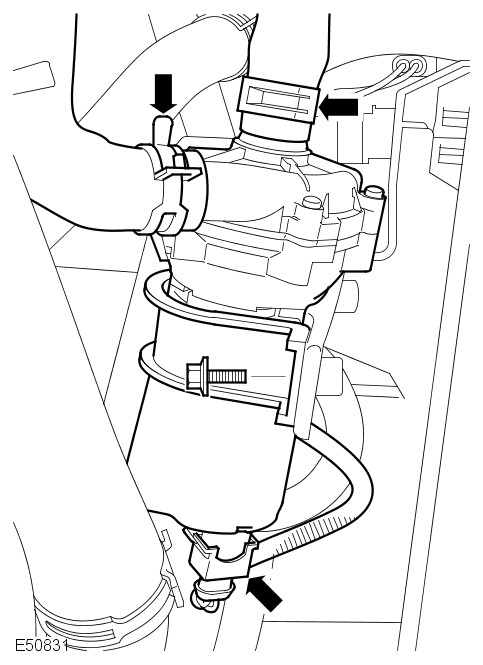

  6. E50831
    Remove the coolant pump.
      • Disconnect the electrical connector.
      • Remove the clamp bolt.
Installation
  1. Install the coolant pump.
      • Install the coolant pump and align with bracket register.
      • Tighten the bolt to 6 Nm (4 lb.ft).
      • Connect the electrical connector.
  2. Connect the coolant pump hoses.
      • Secure with the clips.
      • Remove the hose clamps.
  3. Connect the cooling fan electical connector.
      • Secure the electrical harness with the clip.
  4. Secure the coolant hose.
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  6. Top-up and bleed the supercharger cooling system. For additional information, refer to: Supercharger Cooling System Draining, Filling and Bleeding (303-03D Supercharger Cooling, General Procedures).
  7. Install the engine cover. For additional information, refer to: Engine Cover - V8 S/C 4.2L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
