Published: 11-May-2011

2007.0 Range Rover Sport (LS), 204-04

Wheels and Tires

Tire Pressure Monitoring System Rear Antenna (G407602)

REMOVAL AND INSTALLATION
  • 86.53.17
  • Antenna - rear wheel - tire pressure monitoring system - (TPMS) - renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Raise and support the vehicle.

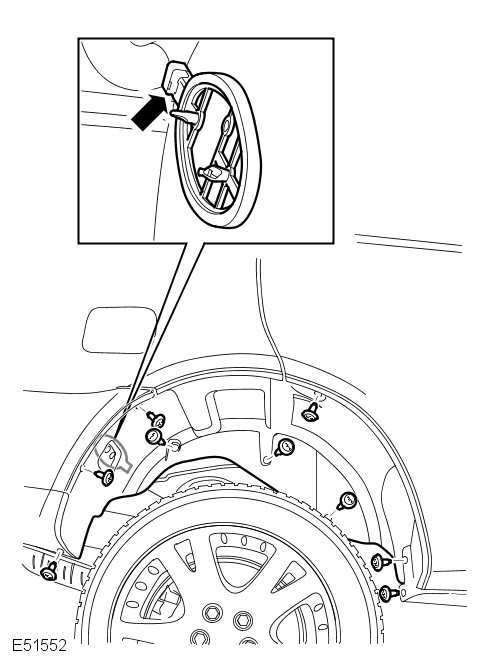

  2. E51552
    Remove the fender splash shield.
      • Remove the 9 screws.
      • Disconnect the electrical connector.

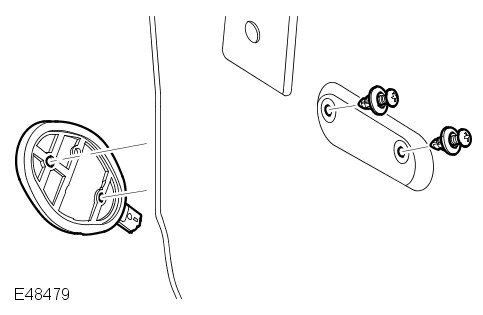

  3. E48479
    Remove the tire pressure antenna.
      • Remove the 2 retainers.
Installation
  1. To install, reverse the removal procedure.
  2. Initiate a new tire pressure antenna using T4.
