2007.0 Range Rover Sport (LS), 307-01D

Automatic Transmission/Transaxle - TDV8 3.6L Diesel

Transmission Fluid Drain and Refill (G406199)

GENERAL PROCEDURES
  • 44.24.02
  • Transmission Fluid Drain and Refill
  • All Derivatives
  • 1.20
  • USED WITHINS
WARNINGS:

  • Observe due care when draining transmission fluid as the fluid can be very hot.

  • Observe due care when working near a hot exhaust system.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E44595
    Remove the transmission undershield.
      • Remove the 6 bolts.
  3. E44596
    If installed, remove the transmission heat shield.
      • Remove the 4 bolts.
  4. Clean the area around the transmission fluid drain and filler plugs.
  5. Place a container under the transmission.
  6. WARNINGS:

    • Observe due care when draining transmission fluid as the fluid can be very hot.

    • Observe due care when working near a hot exhaust system.

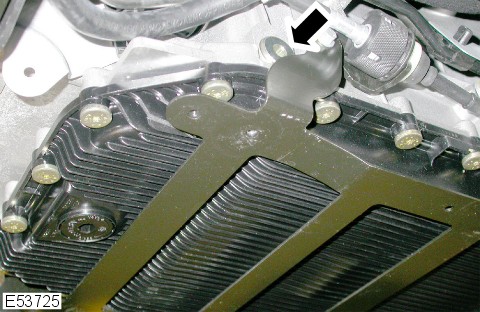

    E53725
    Remove the transmission fluid filler/level plug.
      • Remove and discard the sealing washer.

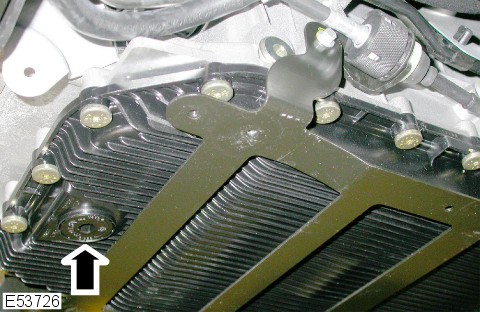

  7. E53726
    Remove the transmission fluid drain plug.
      • Remove and discard the sealing washer.
      • Allow the fluid to drain.
  8. Install the transmission fluid drain plug and tighten to 9 Nm (7 lb.ft).
      • Install a new sealing washer.
  9. Add 3.5 to 4 liters of the correct transmission fluid, or until a small thread of fluid runs from the filler/level hole.
  10. Check and top-up the transmission fluid level. For additional information, refer to: Transmission Fluid Level Check (307-01D Automatic Transmission/Transaxle - TDV8 3.6L Diesel, General Procedures).
