Published: 11-May-2011

2007.0 Range Rover Sport (LS), 414-01

Battery, Mounting and Cables

Auxiliary Battery Tray (G394162)

REMOVAL AND INSTALLATION
  • 76.10.31
  • Base - plenum box - inner - LH - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. E48702
    Remove the battery cover.
      • Release the 2 clips.
  2. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  3. If installed, remove the auxiliary battery.

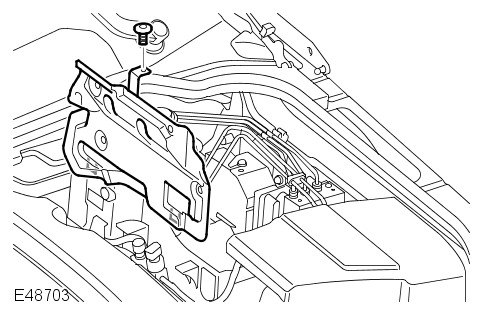

  4. E48703
    Remove the engine compartment upper heat shield.
      • Remove the screw.
      • Release the 2 clips.
  5. E48704
    Remove the auxiliary battery compartment side wall.
      • Release the battery positive cable and grommet.
      • Release the four clips.

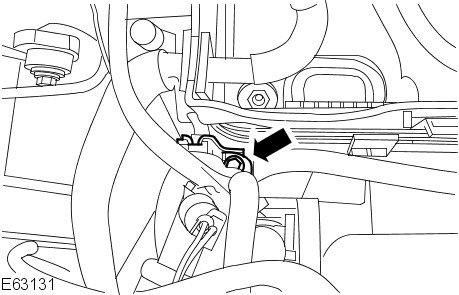

  6. E63131
    Release the A/C pipes.
      • Remove the retaining screw.
  7. E48705
    Remove the auxiliary battery tray.
      • Remove the three retaining nuts.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the nuts to 12 Nm (9 lb.ft).
