Published: 11-May-2011

2007.0 Range Rover Sport (LS), 413-13

Parking Aid

Rear Outer Parking Aid Sensor (G388356)

REMOVAL AND INSTALLATION
  • 86.54.24
  • Rear Outer Parking Aid Sensor - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

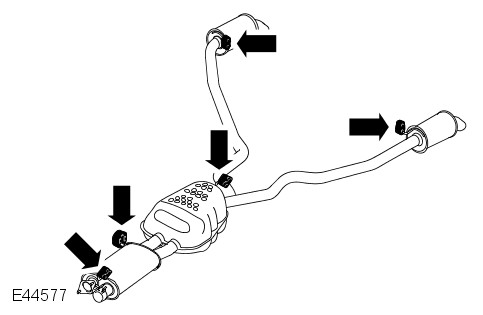

  2. E44577
    Release the 5 exhaust hangers.
      • Support the exhaust assembly.
  3. E45116
    Remove the parking aid sensor.
      • Disconnect the electrical connector.
      • Release the 2 clips.
  4. E45117
    Remove the parking aid sensor trim panel.
      • Release the 3 clips.
Installation
  1. To install, reverse the removal procedure.
