Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-07D

Glow Plug System - TDV8 3.6L Diesel

Glow Plug Relay (G334126)

REMOVAL AND INSTALLATION
  • 19.60.34
  • Relay unit - heater/glow plugs - renew
  • TDV8
  • 0.10
  • USED WITHINS
Removal
NOTE:

This procedure shows the removal and installation of the right hand bank and left hand bank glow plug relays. The glow plug relays are available individually.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

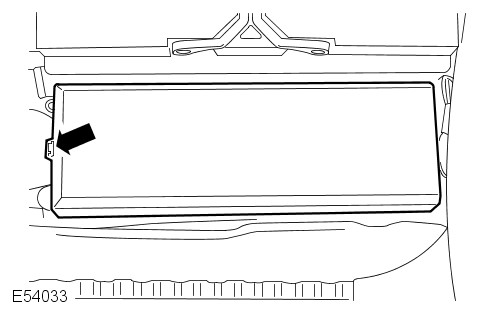

  2. E54033
    Remove the battery junction box (BJB) lid.
      • Release the BJB latch.

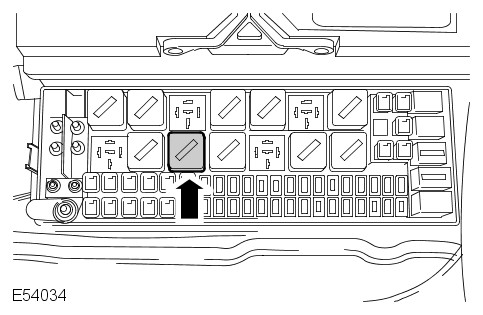

  3. E54034
    Remove the RH bank glow plug relay.

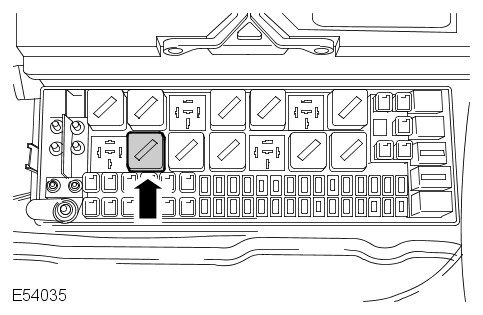

  4. E54035
    Remove the LH bank glow plug relay.
Installation
  1. To install, reverse the removal procedure.
