2007.0 Range Rover Sport (LS), 205-04

Front Drive Halfshafts

Left Halfshaft Seal (G323395)

REMOVAL AND INSTALLATION
  • 54.10.18
  • Oil seal - differential housing - one side - renew
  • All Derivatives
  • 1.20
  • USED WITHINS

Special Tool(s)

E45276

205-754

Ball joint separator (LRT-54-027)

E49618

204-506/1

Halfshaft remover/replacer (LRT-60-030/1)

E49620

204-506/3

Halfshaft remover/replacer (LRT-60-030/3)

E49622

204-506-01

Halfshaft installer adapter

E49621

204-506/5

Retainers - halfshaft remover/replacer (LRT-60-030/5)

E54134

308-005

Axle oil seal remover (LRT-37-004/2)

E54135

100-012

Impulse extractor (LRT-99-004)

E54137

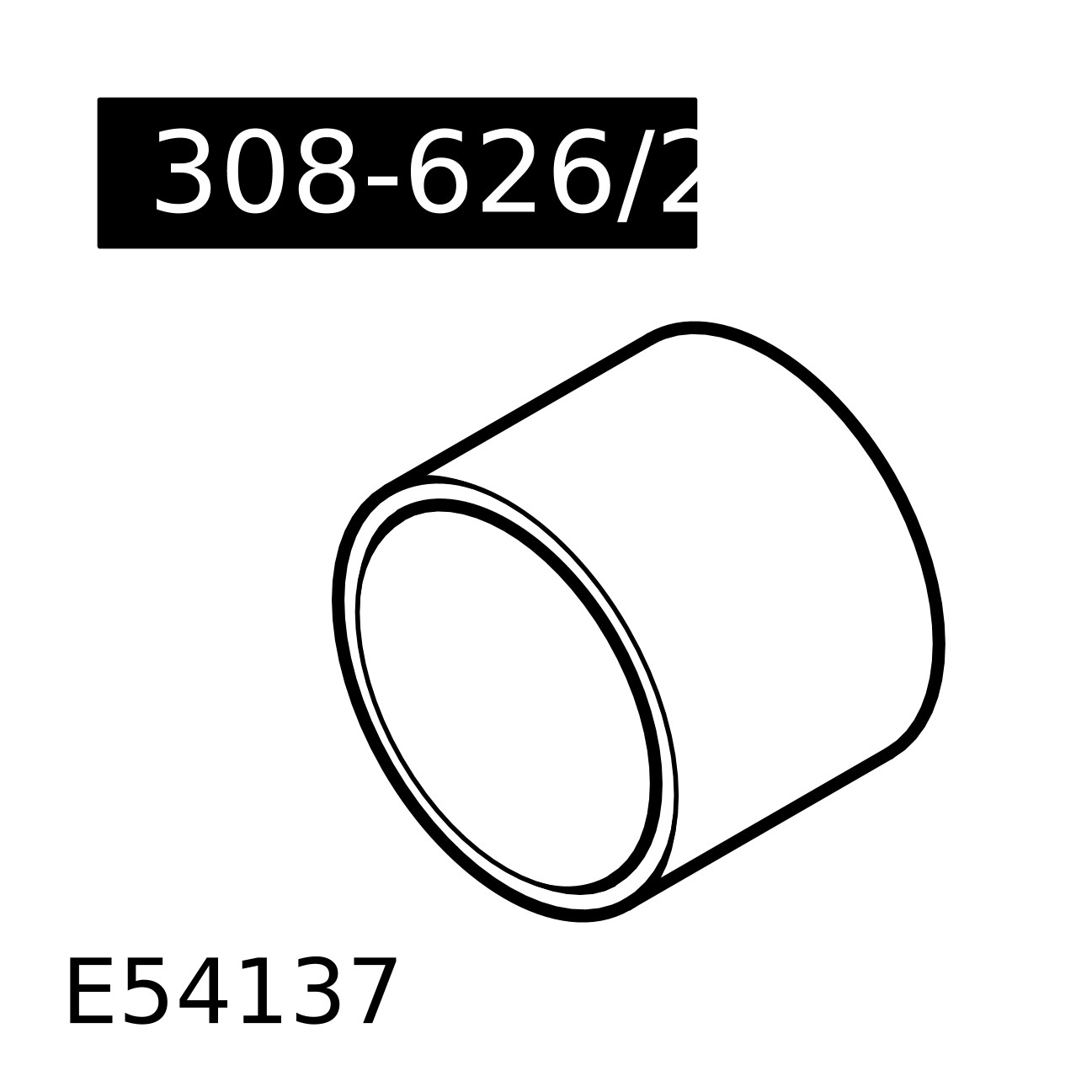

308-626/2

Installer/Guide halfshaft oil seal

E54136

308-626/1

Installer halfshaft oil seal

Removal
CAUTIONS:

  • Do not store or install halfshafts with joints at maximum articulation or damage may occur to the joint

  • Do not allow halfshafts to hang unsupported at one end or joint damage will occur.

  • Angularly Adjusted Roller (AAR) joints, used at the inboard end of some halfshafts have no internal retaining mechanism and can separate.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the LH halfshaft. For additional information, refer to: Halfshaft LH (205-04, Removal and Installation).

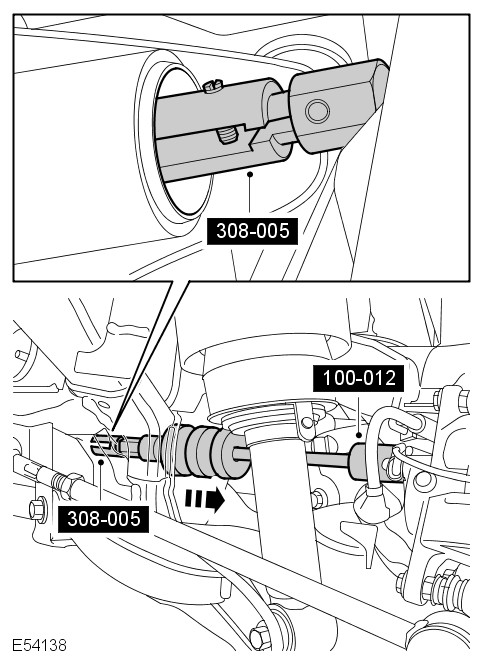

  3. E54138
    Using the special tools, remove and discard the halfshaft oil seal.
Installation

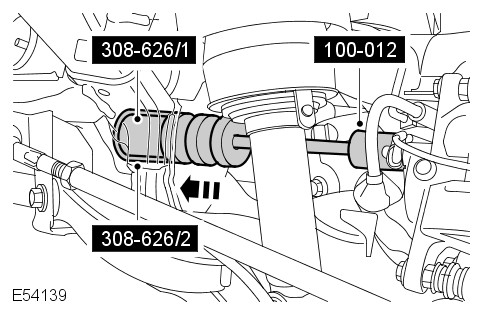

  1. E54139
    Using the special tools, install a new halfshaft oil seal.
      • The halfshaft oil seal protector must be left in place, until the halfshaft is fully installed.
  2. Install the LH halfshaft. For additional information, refer to: Halfshaft LH (205-04, Removal and Installation).
