Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-17

Roof Opening Panel

Roof Opening Panel Module (G301860)

REMOVAL AND INSTALLATION
Removal

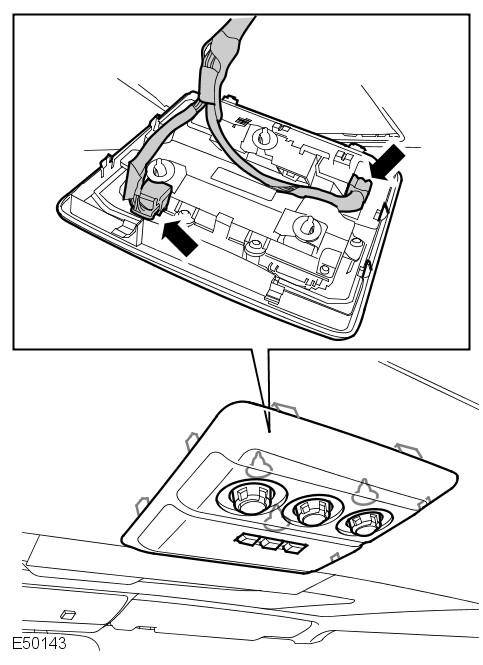

  1. E50143
    Remove the rear overhead console.
      • Carefully release the 9 clips.
      • Disconnect the 2 electrical connectors.

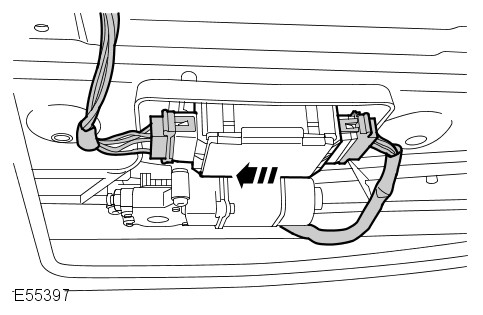

  2. E55397
    Remove the roof opening panel module.
      • Slide the module to the LH side to release it from the bracket.
      • Disconnect the 2 electrical connectors.
Installation
  1. Install the roof opening panel module.
      • Connect the electrical connectors.
      • Secure the module to the bracket.
  2. Install the rear overhead console.
      • Connect the electrical connectors.
      • Carefully secure the clips.
  3. Using T4, configure a new roof opening panel module.
  4. If the battery has been disconnected, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panels calibration routine and reset these functions.
