Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-10

Seating

Rear Seat Cushion Cover (G301513)

REMOVAL AND INSTALLATION
  • 78.40.70
  • Cover - rear seat cushion - LH/each 60/40 split - renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
NOTE:

This procedure shows the removal and installation of both the LH and the RH covers.

  1. Fold the seat cushion forward.

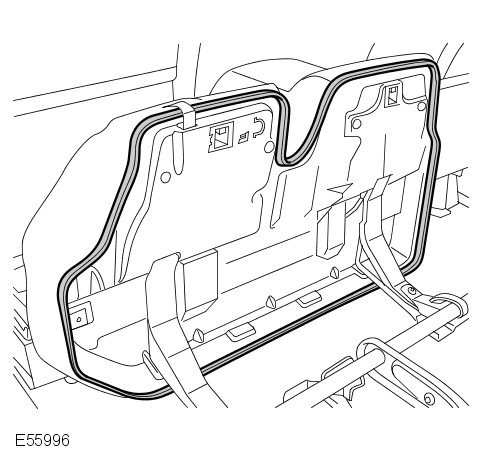

  2. E55996
    Release the rear LH seat cushion cover.
      • Release the clip.

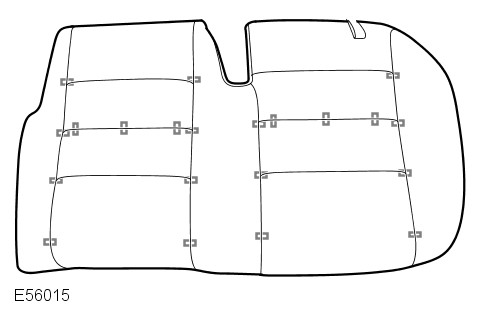

  3. E56015
    Remove the rear LH seat cushion cover.
      • Remove the 21 hog rings.

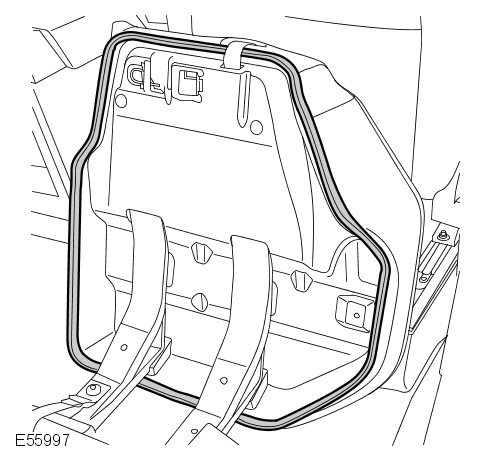

  4. E55997
    Release the rear RH seat cushion cover.
      • Release the clip.

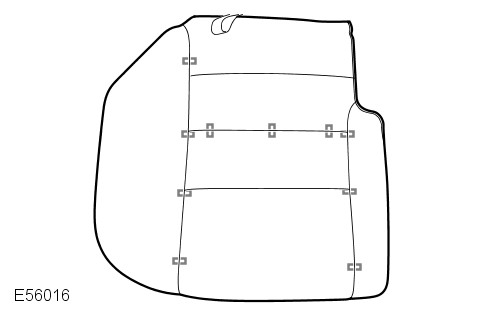

  5. E56016
    Remove the rear RH seat cushion cover.
      • Remove the 10 hog rings.
Installation
  1. Install the rear seat cushion cover.
      • Install the hog rings.
      • Attach the retaining clip.
  2. Fold the seat cushion rearwards.
