Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-10

Seating

Front Seat Recliner Motor (G301506)

REMOVAL AND INSTALLATION
  • 78.70.34
  • Motor - reclining mechanism - front seat - renew
  • All Derivatives
  • 1.20
  • USED WITHINS
Removal
  1. Remove the front seat backrest cover. For additional information, refer to: Front Row Seat Backrest Cover (501-10 Seating, Removal and Installation).
  2. Remove the front seat backrest pad.

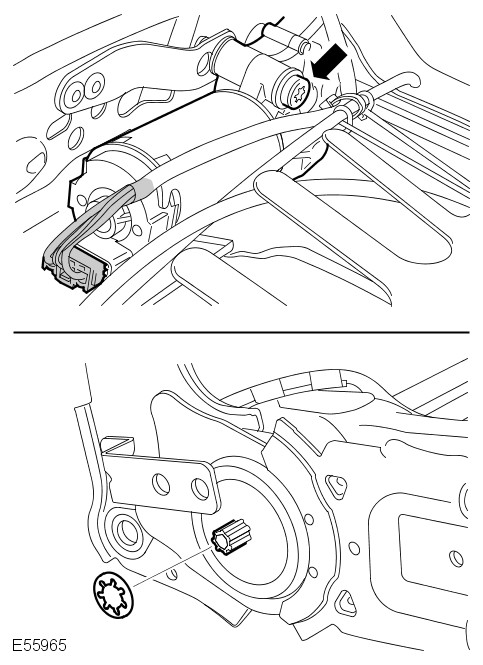

  3. E55965
    Remove the front seat recliner motor.
      • Disconnect the electrical connector.
      • Remove the Torx bolt.
      • Remove the front seat backrest shaft clip.
      • Remove the front seat backrest shaft.
Installation
  1. Install the front seat recliner motor.
      • Install the front seat backrest shaft.
      • Install the front seat backrest shaft clip.
      • Tighten the Torx bolt to 10 Nm (7 lb.ft).
      • Connect the electrical connector.
  2. Install the front seat backrest pad.
  3. Install the front seat backrest cover. For additional information, refer to: Front Row Seat Backrest Cover (501-10 Seating, Removal and Installation).
