Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-10

Seating

Front Seat Track Motor (G301505)

REMOVAL AND INSTALLATION
  • 78.70.25
  • Front row seat track motor - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Raise the seat base for access.

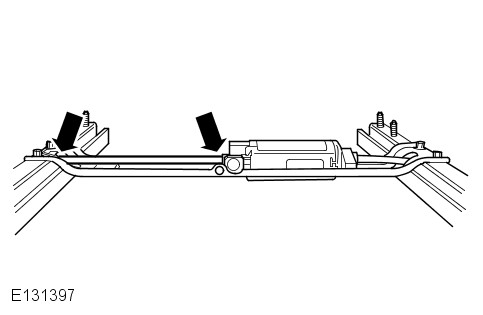

  2. E131397
    Remove the drive cable.
      • Disconnect the seat motor electrical connector.

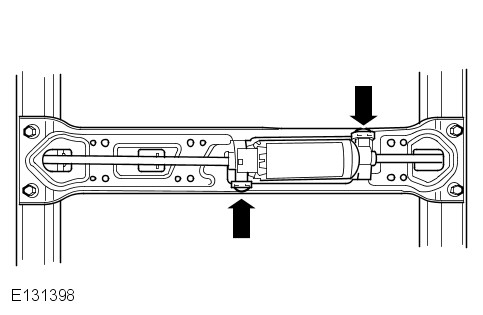

  3. E131398
    Remove the 2 clips.

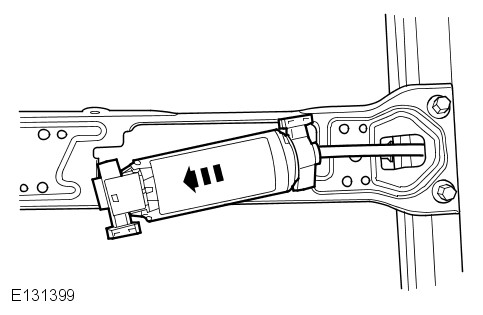

  4. E131399
    Remove the front seat track motor.
Installation
  1. Install the front seat track motor.
      • Install the drive cable.
      • Install the 2 clips.
  2. Install the drive cable.
      • Connect the seat motor electrical connector.
