Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-09

Rear View Mirrors

Interior Mirror (G301433)

REMOVAL AND INSTALLATION
  • 76.10.51
  • Interior Mirror - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal

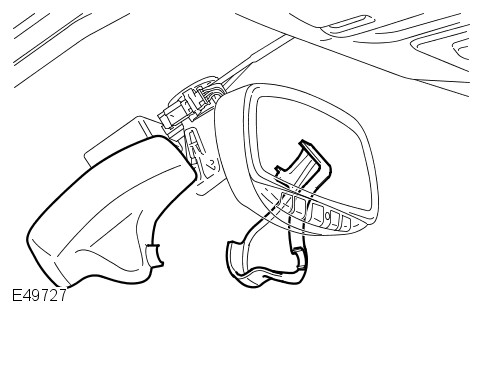

  1. E49727
    If installed, remove the interior mirror upper and lower covers.
      • Release the 2 clips.

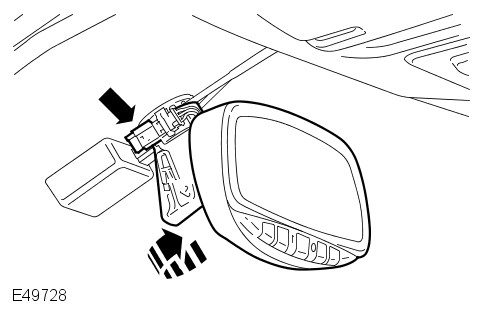

  2. E49728
    Vehicles with an auto-dimming interior mirror, remove the interior mirror.
      • Disconnect the electrical connector.
      • Rotate the mirror stem at its base to release from the windshield.

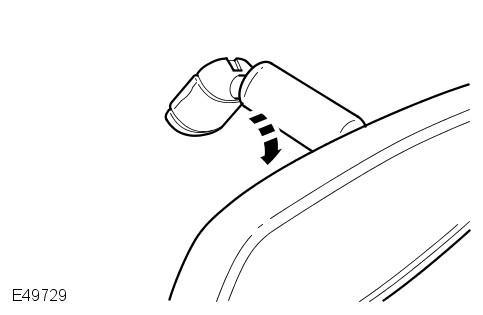

  3. E49729
    Vehicles without an auto-dimming interior mirror, remove the interior mirror.
      • Pull the mirror away from the windshield to release the clip.
Installation

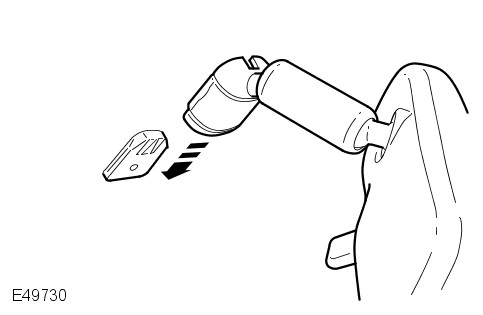

  1. E49730
    Vehicles without an auto-dimming interior mirror, install the interior mirror.
      • Slide the mirror onto the boss from above to engage the clip.

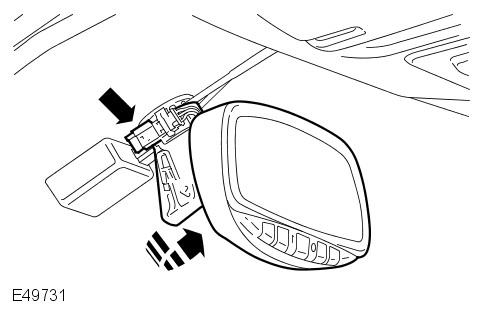

  2. E49731
    Vehicles with an auto-dimming interior mirror, install the interior mirror.
      • Rotate the mirror stem at its base to secure to the windshield.
      • Connect the electrical connector.
  3. Install the interior mirror covers.
      • Secure with the clips.
