Published: 19-Dec-2012

2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Scuff Plate Trim Panel (G301344)

REMOVAL AND INSTALLATION
  • 76.49.54
  • Scuff plate - trim panel - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
NOTES:

  • Some components shown removed for clarity.

  • Some variation in the illustrations may occur, but the essential information is always correct.

  • Removal steps in this procedure may contain installation details.

  • RH shown, LH similar.

  1. Remove the B-pillar lower trim panel. For additional information, refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

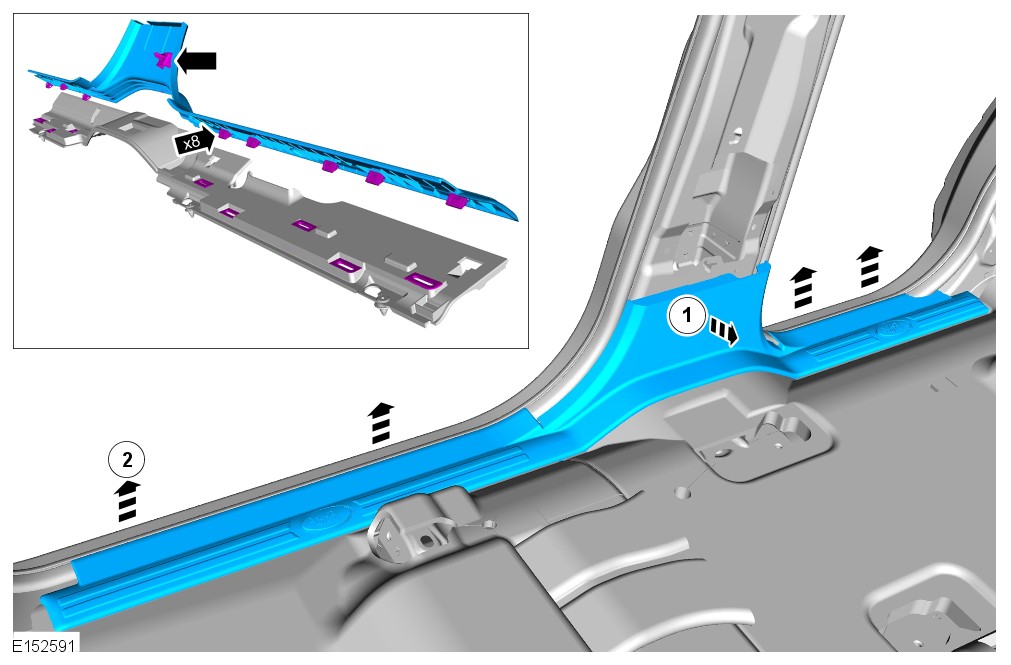

  2. CAUTION:

    Care must be taken when releasing the trim panel from the retaining clips.

    E152591
Installation
  1. To install, reverse the removal procedure.
