Published: 11-May-2011

2007.0 Range Rover Sport (LS), 419-07

Navigation System

Navigation System Antenna (G301135)

REMOVAL AND INSTALLATION
Removal

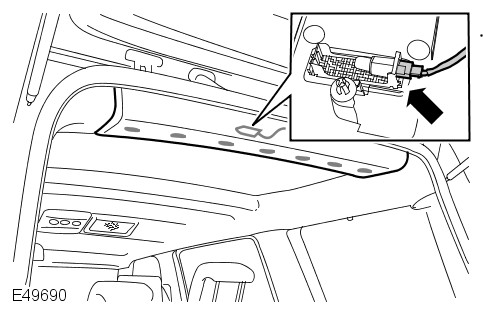

  1. E49690
    Remove the rear headliner trim panel.
      • Release the 7 clips.
      • Disconnect the interior light electrical connector.
  2. If installed remove the LH third row seat passenger assist handle.
      • Carefully release the screw covers.
      • Remove the 2 screws.
  3. E49689
    If installed, remove the RH third row seat passenger assist handle.
      • Carefully release the screw covers.
      • Remove the 2 screws.

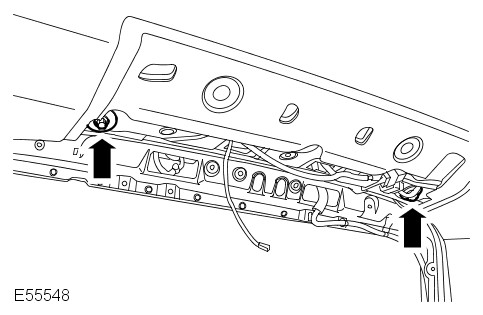

  4. E55548
    Release the rear of the headliner.
      • Release the 2 clips.

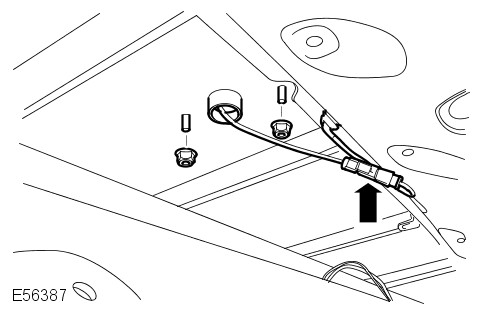

  5. E56387
    Remove the navigation system antenna.
      • Disconnect the electrical connector.
      • Remove the 2 nuts.
Installation
  1. Install the navigation system antenna.
      • Tighten the nuts to 10 Nm (7 lb.ft).
      • Connect the electrical connector.
  2. Attach the rear of the headliner.
      • Secure with the clips.
  3. Install the RH third row seat passenger assist handle, if installed.
      • Tighten the screws.
      • Attach the covers.
  4. Install the LH third row seat passenger assist handle, if installed.
      • Tighten the screws.
      • Attach the covers.
  5. Install the rear headliner trim panel.
      • Secure in the clips.
      • Connect the electrical connector.
