Published: 15-May-2014

2007.0 Range Rover Sport (LS), 417-01

Exterior Lighting

Headlamp Adjustment (G300939)

GENERAL PROCEDURES
  • 86.40.17
  • Headlamps - Both Sides - Align Beam
  • All Derivatives
  • 0.10
  • USED WITHINS
NOTES:

  • With self leveling suspension, make sure the vehicle is at the standard ride height.

  • The headlamp setting is 1.2 % below horizontal and parallel.

  • NAS vehicles have vertical adjustment only.

  1. Align the headlamp beam setting equipment to one headlamp.
  2. Switch the headlamps on and to dipped beam.
  3. NOTE:

    NAS vehicles have vertical adjustment only.

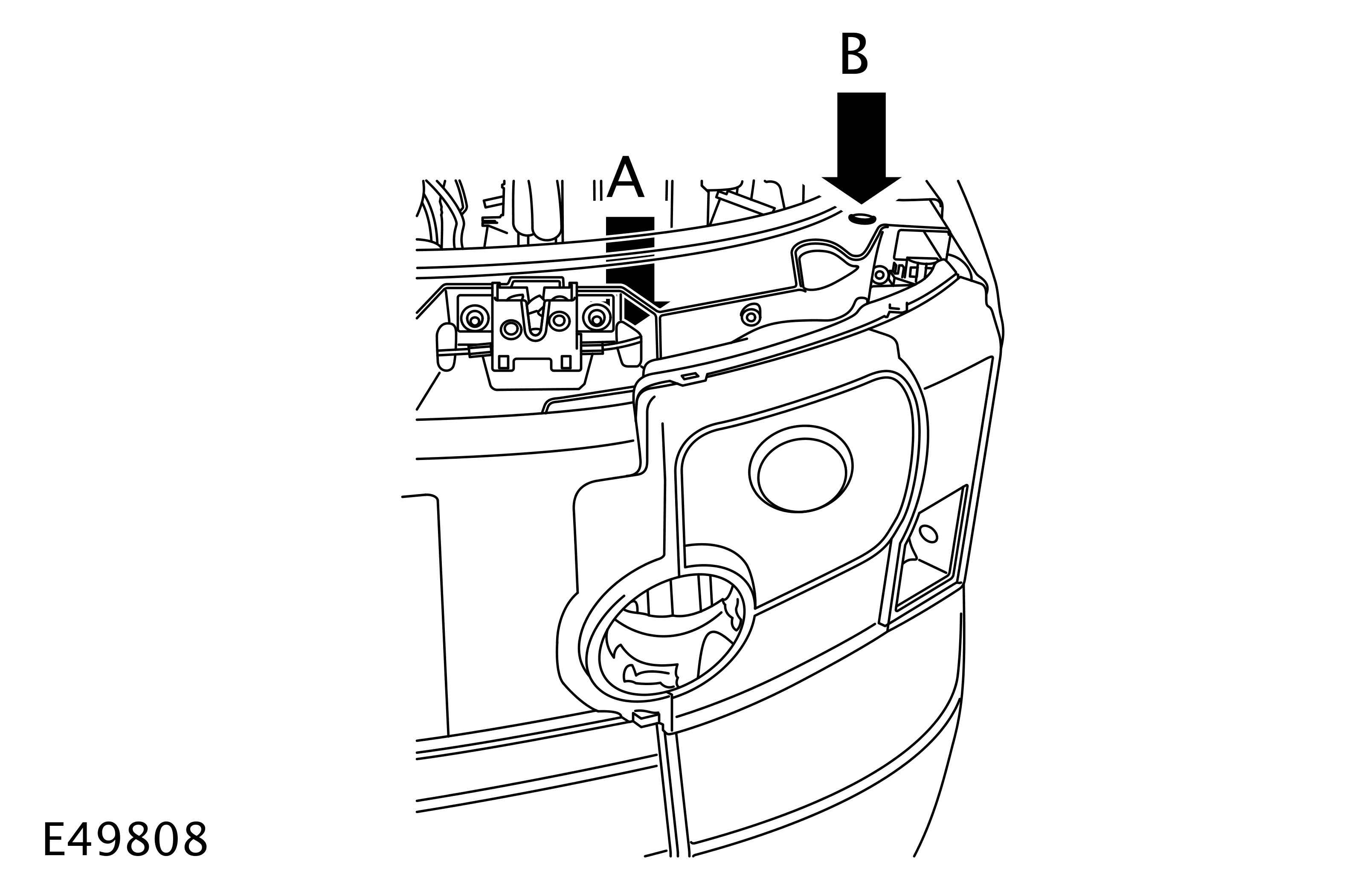

    E49808
    Adjust the headlamps using a suitable tool.
      • Rotate the adjusters A and B by an equal amount for vertical alignment.
      • Rotate the adjusters A or B for horizontal alignment.
  4. To adjust the second headlamp, repeat the above procedure.
