2007.0 Range Rover Sport (LS), 415-01

Audio Unit

Audio Amplifier (G300861)

REMOVAL AND INSTALLATION
  • 86.50.36
  • Audio Amplifier Module - Renew
  • All Derivatives
  • 0.60
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the RH front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).
  3. CAUTION:

    Cover fiber optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

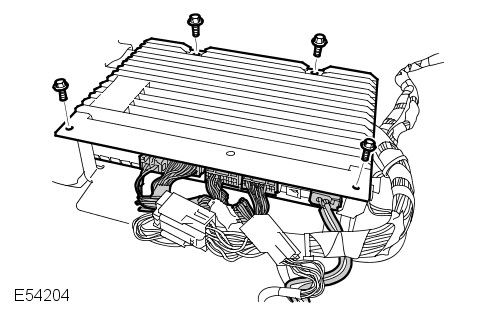

    E54204
    Remove the amplifier.
      • Remove the 4 bolts.
      • Disconnect the 5 electrical connectors.
Installation
  1. Install the amplifier.
      • Install the bolts and tighten to 10 Nm (7 lb.ft).
      • Connect and secure the electrical connectors.
  2. Install the front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  4. Using the Land Rover approved diagnostic equipment, follow the on-screen instructions and configure the audio unit amplifier.
