2007.0 Range Rover Sport (LS), 310-02D

Acceleration Control - TDV8 3.6L Diesel

Accelerator Pedal (G300395)

REMOVAL AND INSTALLATION
  • 19.20.01
  • Accelerator pedal - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. E47923
    Remove the driver side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

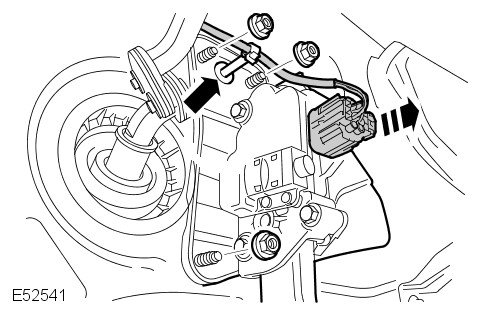

  2. E52541
    Remove the accelerator pedal assembly.
      • Release the wiring harness.
      • Remove the 3 nuts.
      • Disconnect the electrical connector.
  3. NOTE:

    Do not disassemble further if the component is removed for access only.

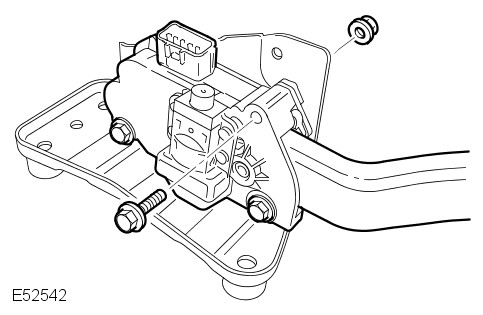

    E52542
    Remove the accelerator pedal bracket.
      • Remove the 3 nuts and bolts.
Installation

The following step(s) applies to:
All vehicles

  1. Attach the accelerator pedal bracket.
      • Tighten the nuts and bolts to 10 Nm (7 lb.ft).
  2. NOTE:

    Make sure the electrical connector is securely connected.

    Install the accelerator pedal assembly.
      • Connect the electrical connector.
      • Tighten the nuts to 25 Nm (18 lb.ft).
      • Secure the wiring harness.
  3. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.

The following step(s) applies to:
Vehicles with petrol engine

  1. Using the approved diagnostic equipment, clear the powertrain control module (PCM) adaptions.
