2007.0 Range Rover Sport (LS), 206-09A

Anti-Lock Control - Traction Control

Rear Wheel Speed Sensor (G297822)

REMOVAL AND INSTALLATION
  • 70.65.31
  • Wheel Speed Sensor - Rear - Each - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the wheel and tire.

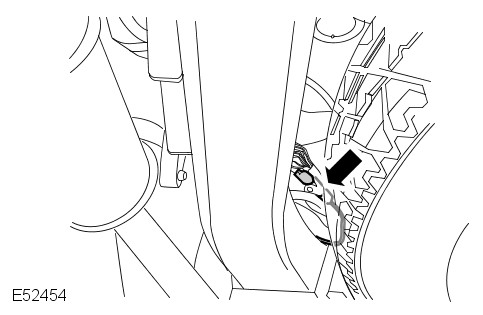

  3. E52454
    Disconnect the anti-lock brake system (ABS) sensor electrical connector.
      • Release the wiring harness retaining clip.

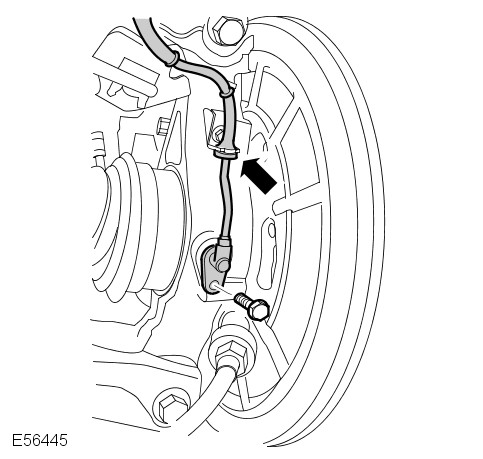

  4. E56445
    Release the wheel speed sensor from the wheel knuckle.
      • Release the wiring harness.
      • Remove the retaining bolt.

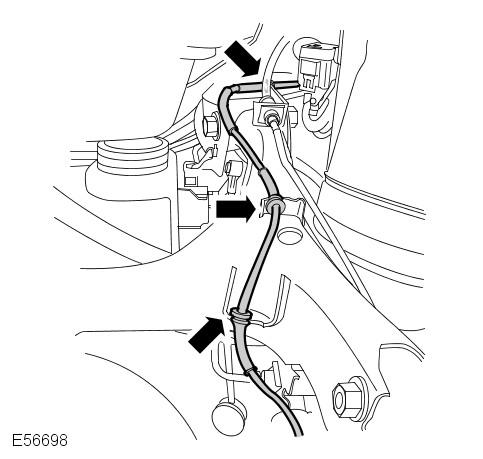

  5. E56698
    Remove the wheel speed sensor.
      • Release the wiring harness from the 4 clips.
Installation
  1. Make sure the wheel speed sensor location in the wheel knuckle is free of dirt.
  2. Install the wheel speed sensor.
      • Attach the wiring harness to the 4 clips.
  3. Secure the wheel speed sensor to the wheel knuckle.
      • Tighten the bolt to 9 Nm (7 lb.ft).
      • Attach the wiring harness to the clip.
  4. NOTE:

    Make sure the electrical connector retaining clip is attached to the body wiring harness.

    Connect the ABS sensor electrical connector.
      • Attach the wiring harness.
  5. If a new wheel speed sensor has been installed, interrogate the ABS system using Land Rover diagnostic equipment.
