2007.0 Range Rover Sport (LS), 205-02

Rear Drive Axle/Differential

Rear Axle Housing Support Insulator (G297573)

REMOVAL AND INSTALLATION
  • 51.15.44
  • Bush - differential mounting - rear - each - renew
  • TDV8, With Particulate Filter
  • 3.80
  • USED WITHINS
  • 51.15.44
  • Bush - differential mounting - rear - each - renew
  • TDV8, Without Particulate Filter
  • 3.10
  • USED WITHINS

Special Tool(s)

E54148

502-009/5

Remover/Installer long 14mm bolt

E54149

Bearing set for 14mm and 16mm bolt, 51203

E54150

502-009/1

Receiver cup rear differential rear bush

E54151

502-009/2

Remover rear differential rear bush

E54152

502-009/3

Installer rear differential rear bush

Removal
NOTE:

Take note of the fitted position of the bush.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the wheels and tires.
  3. Remove the rear differential. For additional information, refer to: Axle Assembly (205-02, Removal and Installation).
  4. NOTE:

    Take note of the fitted position of the bush.

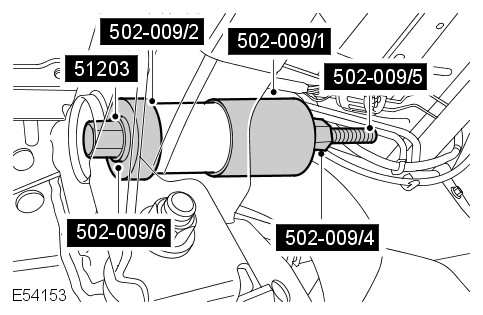

    E54153
    Using the special tools, remove the rear axle housing support insulator.
Installation

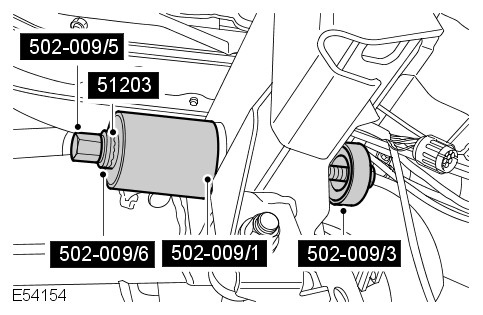

  1. E54154
    Using the special tools, install the rear axle housing support insulator.
  2. Install the rear differential. For additional information, refer to: Axle Assembly (205-02, Removal and Installation).
  3. Install the wheels and tires.
      • Tighten the wheel nuts to 140 Nm (103 lb.ft).
