2007.0 Range Rover Sport (LS), 204-02

Rear Suspension

Upper Arm Ball Joint (G297424)

REMOVAL AND INSTALLATION
  • 64.15.07
  • Ball joint - upper - left/each - renew
  • All Derivatives
  • 2.60
  • USED WITHINS

Special Tool(s)

E49576

204-525/3

Remover/installer rear upper arm ball joint

E49575

204-525/2

Remover/installer rear upper arm ball joint

E49574

204-525/1

Remover/installer rear upper arm ball joint

Removal
  1. Remove the wheel knuckle. For additional information, refer to: Wheel Knuckle (204-02 Rear Suspension, Removal and Installation).

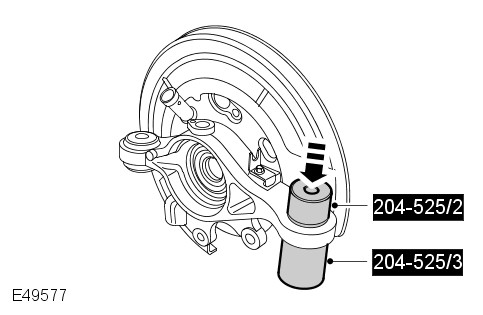

  2. E49577
    Using the special tools, remove the ball joint.
      • Position machined face against the special tool.
Installation
  1. Clean the components.
  2. CAUTIONS:

    • Ensure the ball joint seal is not damaged. A damaged seal will lead to the premature failure of the joint.

    • If the push in force is less than 10 kN the wheel knuckle must be replaced.

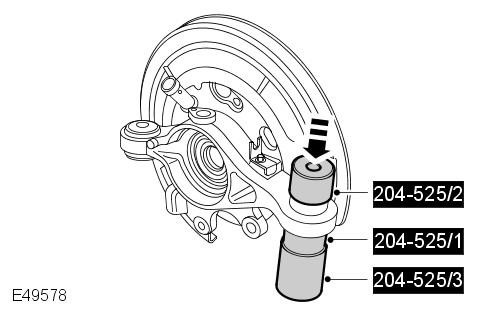

    E49578
    Using the special tools, install the ball joint.
      • Position machined face against the special tool.
  3. Install the wheel knuckle. For additional information, refer to: Wheel Knuckle (204-02 Rear Suspension, Removal and Installation).
