2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Rear Center Safety Belt Buckle - Vehicles With: 60/40 Split Seat (G2250343)

REMOVAL AND INSTALLATION
  • 76.73.19
  • Seat belt - centre - rear - 60/40 split - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
  • 76.73.64
  • Buckle - Second row seatbelt centre - 60/40 split - renew
  • All Derivatives
  • 0.20
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Seatbelt buckle bolt(s)1
Installation Step 4Seat frame to body bolt(s)4
Removal

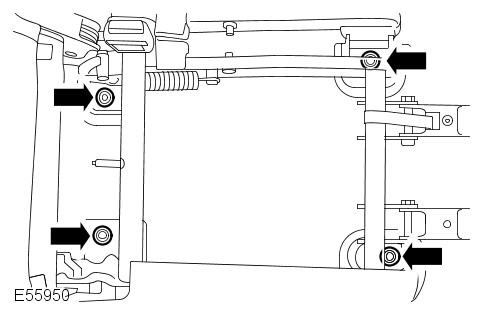

  1. E55950
    Fold the seat cushion forward. Remove and discard the 4 Torx bolts. Fold down the rear seat backrest. Release the RH rear seat.
  2. Remove the RH rear seat.

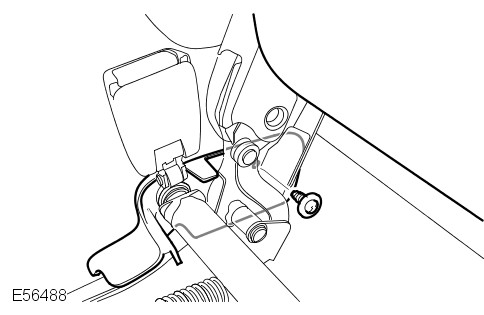

  3. E56488
    Raise the seat cushion. Remove the screw. Remove the rear seat cushion side finisher.

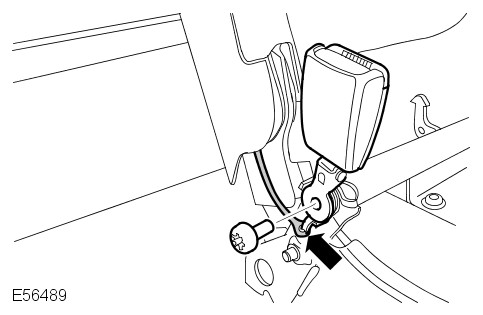

  4. E56489
    Release the retaining strap. Remove and discard the bolt. Remove the safety belt buckle.
Installation
  1. Install the safety belt buckle. Tighten the Torx bolt. Attach the retaining strap. Lower the seat cushion.
    Renew Part: Seatbelt buckle bolt(s) Quantity: 1.
    Torque: 40Nm
  2. Install the rear seat cushion side finisher. Tighten the screw.
  3. Install the RH rear seat. Position the seat on the dowels.
  4. Secure the RH rear seat. Return the seat backrest to the upright position. Tighten the new bolts. Fold the seat cushion rearwards.
    Renew Part: Seat frame to body bolt(s) Quantity: 4.
    Torque: 40Nm
