2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Rear Right Safety Belt Buckle (G2250341)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 1Seatbelt buckle bolt(s)1
Installation Step 4Seat frame to body bolt(s)4
Removal
  1. E55950
    Release the RH rear seat. Fold the seat cushion forward. Remove and discard the 4 Torx bolts. Fold down the rear seat backrest.
  2. Remove the RH rear seat.

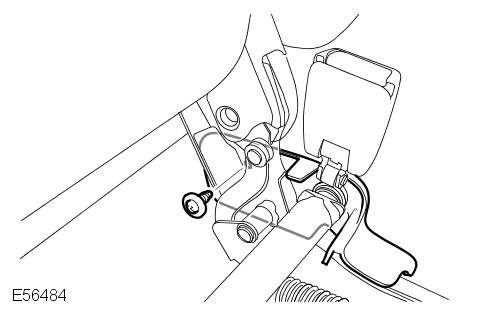

  3. E56484
    Remove the rear seat cushion side finisher. Remove the screw.

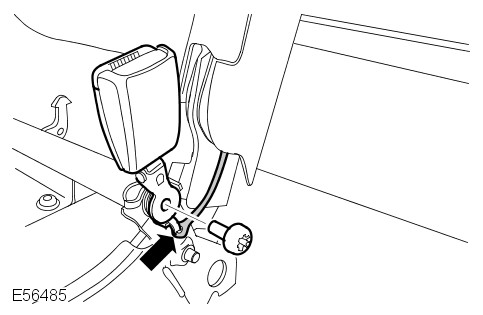

  4. E56485
    Remove the safety belt buckle. Raise the seat cushion. Release the retaining strap. Remove and discard the bolt.
Installation
  1. Install the safety belt buckle. Tighten the Torx bolt. Attach the retaining strap. Lower the seat cushion.
    Renew Part: Seatbelt buckle bolt(s) Quantity: 1.
    Torque: 40Nm
  2. Install the rear seat cushion side finisher. Tighten the screw.
  3. Install the RH rear seat. Position the seat on the dowels.
  4. Secure the RH rear seat. Return the seat backrest to the upright position. Tighten the new bolts. Fold the seat cushion rearwards.
    Renew Part: Seat frame to body bolt(s) Quantity: 4.
    Torque: 40Nm
