2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Second Row Center Safety Belt Retractor - Vehicles With: 60/40 Split Seat (G2250338)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 3Seatbelt nut1
Installation Step 1Seatbelt retractor bolt1
Removal

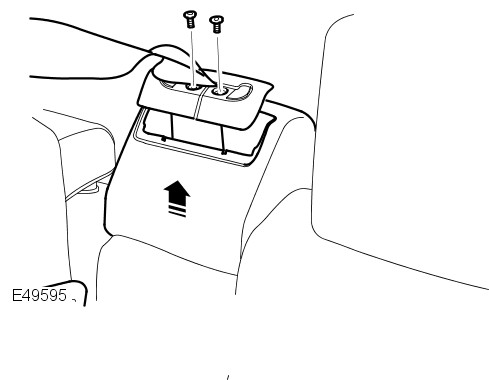

  1. E49595
    Release the safety belt retractor cover and guide Remove the 2 screws. Remove the safety belt guide. Remove the retractor cover.

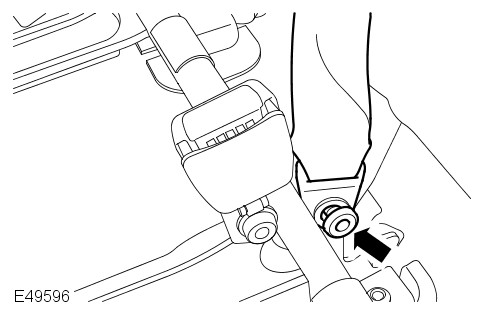

  2. E49596
    Remove the safety belt lower anchor. Raise the seat cushion. Remove and discard the nut.

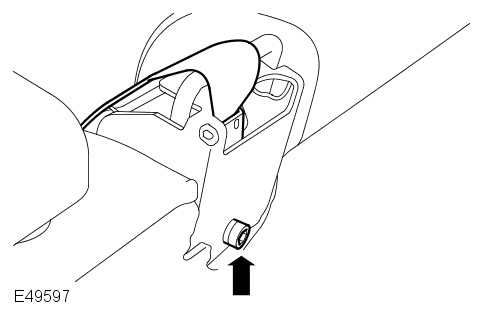

  3. E49597
    Remove the safety belt retractor assembly. Remove and discard the Torx bolt.
Installation
  1. Install the safety belt retractor assembly. Tighten the new Torx bolt.
    Renew Part: Seatbelt retractor bolt Quantity: 1.
    Torque: 40Nm
  2. Install the safety belt guide and retractor cover. Attach the safety belt guide and retractor cover. Tighten the screws.
  3. Install the safety belt lower anchor. Tighten the new nut. Lower the seat cushion.
    Renew Part: Seatbelt nut Quantity: 1.
    Torque: 40Nm
