2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

A-Pillar Trim Panel (G2250315)

REMOVAL AND INSTALLATION
  • 76.13.26
  • A-Pillar Trim Upper - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 2Interior trim retaining screw(s)1
Removal

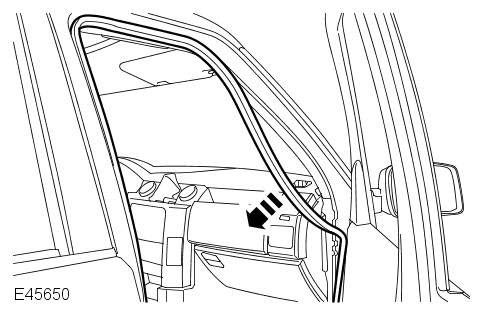

  1. E45650
    Release the door weatherstrip to access the A-pillar upper trim panel and instrument panel end panel.

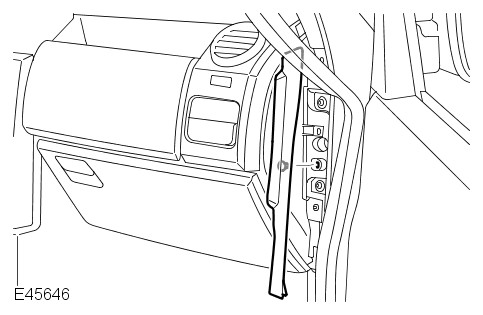

  2. E45646
    Remove the instrument panel end panel. Release the clip.

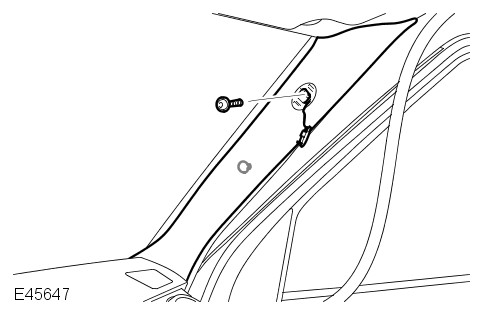

  3. E45647
    Remove the A-pillar upper trim panel. Release the screw cover. Remove and discard the Torx screw. Release the clip.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

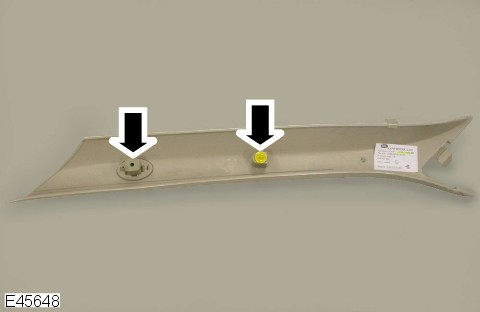

    E45648
    Remove the screw retainer and clip from the A-pillar upper trim panel.
Installation
  1. Install the screw retainer and clip to the A-pillar upper trim panel.
  2. Install the A-pillar upper trim panel. Secure with the clip. Install a new Torx screw and tighten. Install the screw cover.
    Renew Part: Interior trim retaining screw(s) Quantity: 1.
    Torque: 3Nm
  3. Install the instrument panel end panel. Secure with the clip.
  4. Attach the door weatherstrip.
