Published: 27-Mar-2018

2007.0 Range Rover Sport (LS), 310-01D

Fuel Tank and Lines - TDV8 3.6L Diesel

Fuel Filter Element (G2250295)

REMOVAL AND INSTALLATION
  • 19.25.02
  • Fuel Filter - Main - Renew
  • TDV8
  • 0.50
  • USED WITHINS

Part(s)

StepPart nameQuantity
Removal Step 7Water in fuel sensor1
Removal
WARNINGS:

  • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

  • This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

  • Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

  • If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek immediate medical attention.

  • If taken internally, do not induce vomiting, seek immediate medical attention. Failure to follow these instructions may result in personal injury.

  • Wash hands thoroughly after fuel handling, as prolonged contact may cause irritation. Should irritation develop, seek medical attention.

  • The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent fire and explosion.

CAUTIONS:

  • Diesel fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.

  • Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E44595
    Remove the 6 bolts. Remove the transmission undershield.
  3. WARNING:

    Observe due care when working near a hot exhaust system.

    E86483
    Remove the 3 bolts. Remove the fuel filter heat shield.
  4. CAUTION:

    Make sure the water-in-fuel sensor remains in the aligned position.

    E88183
    Drain the fuel filter element. Position a container to collect the fluid spillage. Loosen the nut. Attach a suitable drain tube to the water-in-fuel sensor drain port. Remove the drain tube. Tighten the nut.
  5. CAUTION:

    Make sure that the area around the component is clean and free of foreign material.

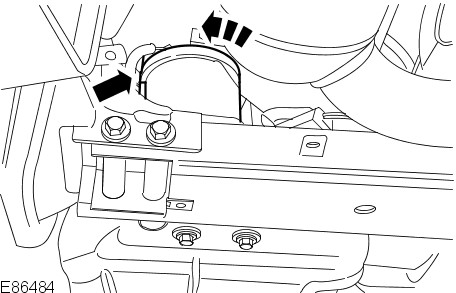

    E86484
    Disconnect the water-in-fuel sensor electrical connector. Remove the fuel filter element.

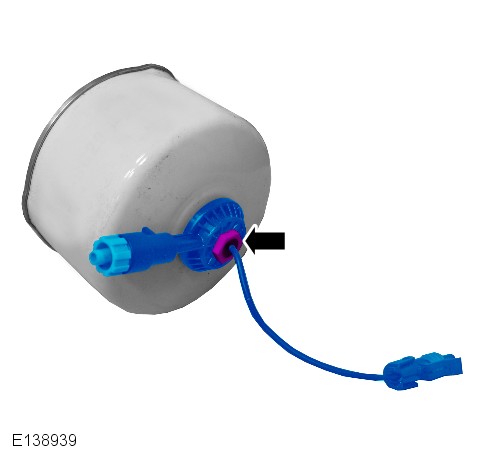

  6. E138939
    Remove the water-in-fuel sensor. Discard the fuel filter element.

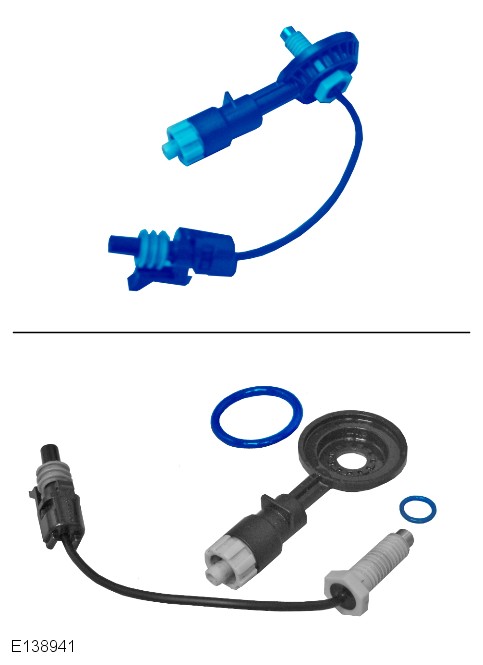

  7. E138941
    Remove and discard the O ring seals.
    Renew Part: Water in fuel sensor Quantity: 1.
Installation

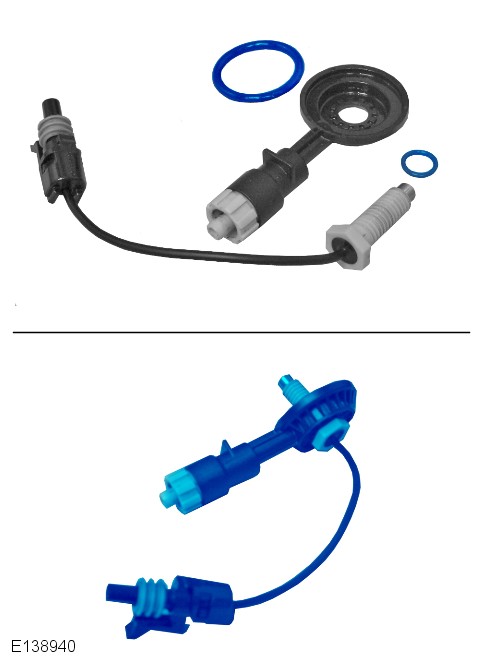

  1. E138940
    Install new O ring seals.
  2. CAUTION:

    Make sure that the mating faces are clean and free of foreign material.

    NOTE:

    Make sure that the water-in-fuel sensor is aligned with the drain arrow.

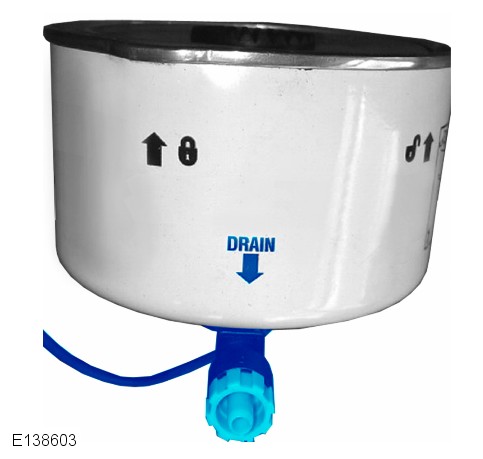

    E138603
    Install the water-in-fuel sensor. Remove and discard the water-in-fuel drain plug from the new fuel filter element.
  3. CAUTION:

    Make sure the water-in-fuel sensor remains in the aligned position.

    E138939
    Tighten the plastic nut.
    Torque: 1.6Nm
  4. NOTE:

    Make sure that the fuel filter element is correctly aligned. Failure to follow this instruction may result in damage to the vehicle.

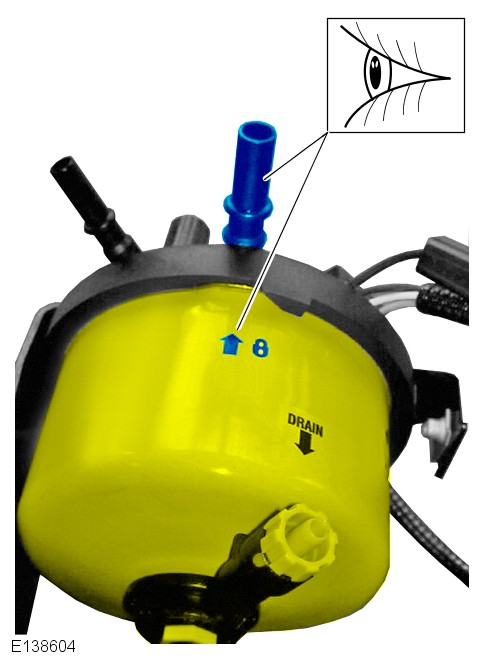

    E138604
    Install the fuel filter element. Insert the fuel filter with the lock symbol arrow aligned with the inlet pipe on the fuel filter housing.
  5. NOTE:

    Make sure that the fuel filter element is correctly aligned. Failure to follow this instruction may result in damage to the vehicle.

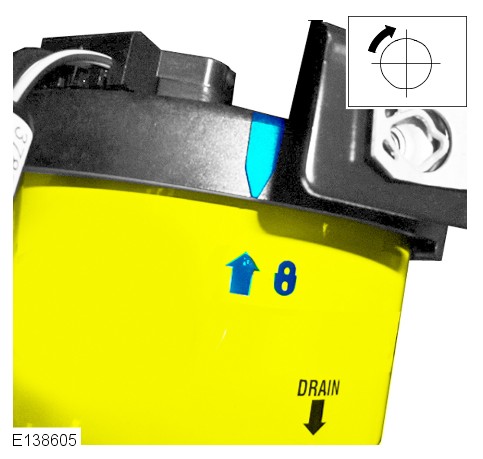

    E138605
    Rotate to tighten and seal the fuel filter element. When tightened correctly, the lock symbol arrow should be aligned with the arrow symbol on the fuel filter housing. Connect the water-in-fuel sensor electrical connector. Remove the container.
  6. Install the fuel filter heat shield. Tighten the bolts.
    Torque: 6Nm
  7. Install the transmission undershield. Tighten the bolts.
    Torque: 10Nm
  8. Carry out the low-pressure fuel system bleeding.
