2007.0 Range Rover Sport (LS), 211-04

Steering Column and Steering Wheel

Steering Column Shaft (G2250280)

REMOVAL AND INSTALLATION
  • 57.40.22
  • Steering Column Intermediate Shaft - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 2Steering column intermediate shaft lower bolt1
Installation Step 3Steering column intermediate shaft upper bolt1
Removal
  1. Disconnect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

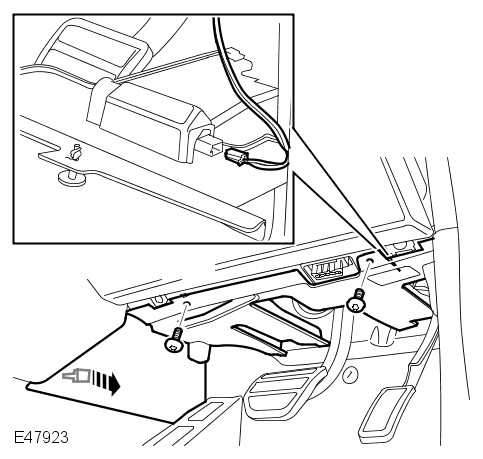

  2. E47923
    Release the clip. Remove the 2 screws. Disconnect the electrical connector. Remove the driver side closing trim panel.

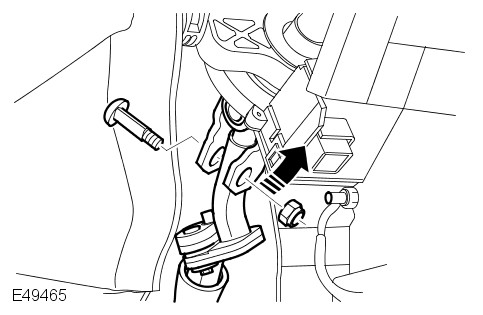

  3. E49465
    Note the fitted position. Remove the special bolt and discard the nut. Disconnect the steering column intermediate shaft from the steering column.

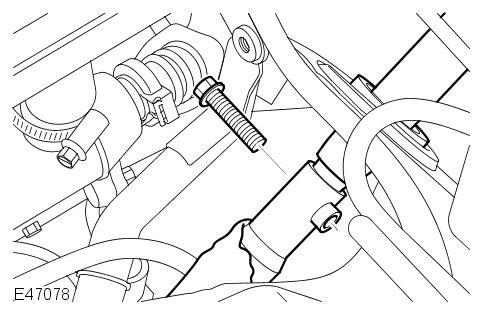

  4. E47078
    Note the fitted position. Remove and discard the bolt. Disconnect the steering column intermediate shaft from the lower shaft.
  5. Release the 2 grommets. Remove the steering column intermediate shaft.
  6. NOTES:

    • Do not disassemble further if the component is removed for access only.

    • Note the fitted position.

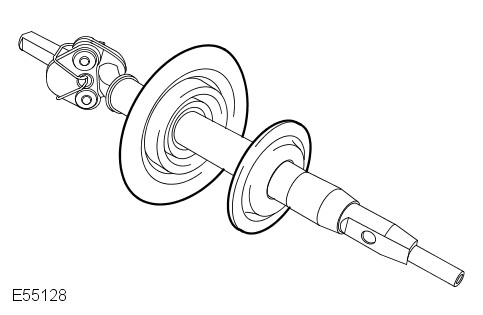

    E55128
    Remove the 2 intermediate shaft grommets.
Installation
  1. Install the steering column intermediate shaft. Install the grommets.
  2. Connect the steering column intermediate shaft to the lower shaft. Tighten the new bolt.
    Renew Part: Steering column intermediate shaft lower bolt Quantity: 1.
    Torque: 25Nm
  3. Connect the steering column intermediate shaft to the steering column. Install the special bolt and tighten the new nut.
    Renew Part: Steering column intermediate shaft upper bolt Quantity: 1.
    Torque: 22Nm
  4. Install the driver side closing trim panel. Connect the electrical connector. Secure the clip. Tighten the screws.
  5. Connect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
