2007.0 Range Rover Sport (LS), 211-02

Power Steering

Steering Angle Sensor (G2250272)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 2Steering column intermediate shaft nut(s)1
Removal
  1. Disconnect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. E47923
    Release the clip. Remove the 2 screws. Disconnect the electrical connector. Remove the driver side closing trim panel.
  3. E47076

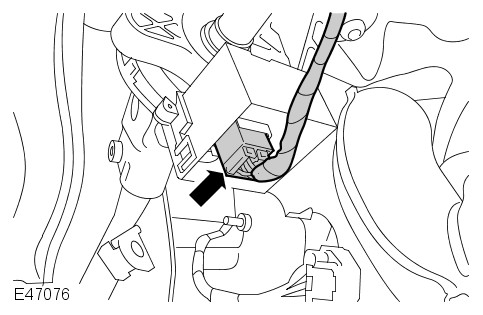

    Disconnect the steering angle sensor electrical connector.
  4. E49465
    Note the fitted position. Remove the special bolt and discard the nut. Disconnect the steering column intermediate shaft from the steering column.
  5. E47084
    Remove the 3 Torx screws. Remove the steering angle sensor.
Installation
  1. Install the steering angle sensor. Tighten the Torx screws.
    Torque: 3Nm
  2. Connect the steering column intermediate shaft. Install the special bolt and tighten.
    Renew Part: Steering column intermediate shaft nut(s) Quantity: 1.
    Torque: 22Nm
  3. Connect the steering angle sensor electrical connector.
  4. Install the closing trim panel. Connect the electrical connector. Secure the clip. Tighten the screws.
  5. Connect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  6. Initiate a new steering angle sensor using T4.
