Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 205-02

Rear Drive Axle/Differential

Differential Locking Motor (G2250107)

IN-VEHICLE REPAIR

Part(s)

StepPart nameQuantity
Installation Step 2Differential locking motor1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

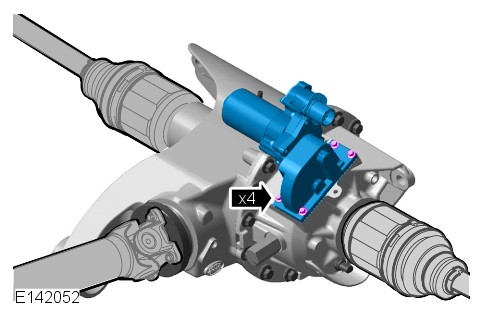

  2. E142052
    Remove the differential locking motor. Disconnect the electrical connector. Remove the 4 bolts.

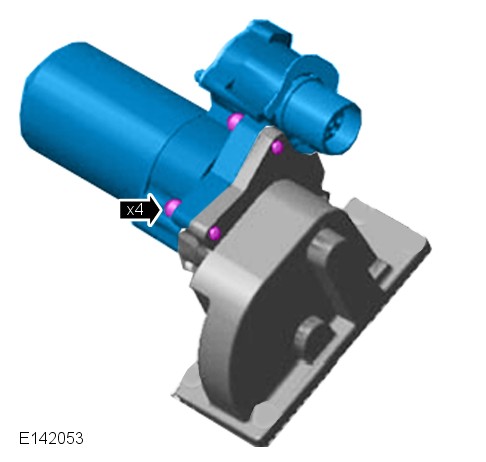

  3. E142053
    Remove the 4 bolts.

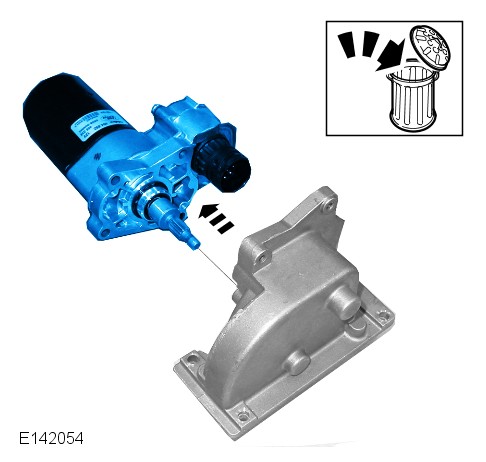

  4. E142054
    Discard the motor.
  5. Check the gear set for damage to the gears.
Installation
  1. Clean the component mating faces.

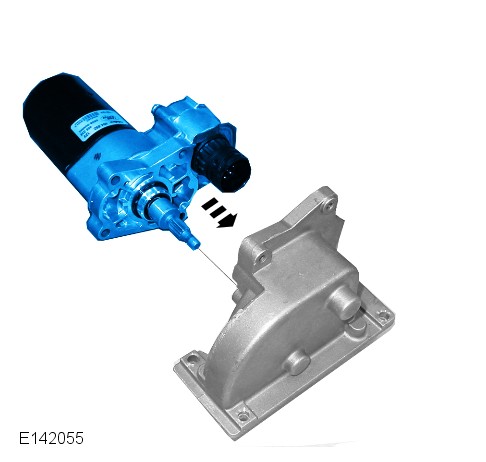

  2. E142055
    Install the new motor with new O ring seal.
    Renew Part: Differential locking motor Quantity: 1.
  3. E142053
    Install the 4 bolts.
    Torque: 12Nm

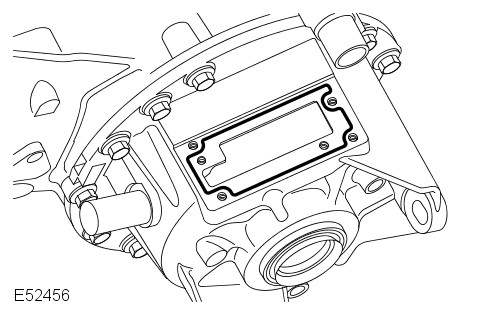

  4. E52456
    Clean the component mating faces and apply continuous bead of sealant to the motor mating face on the differential.
  5. E142052
    Install the differential locking motor. Tighten the bolts. Connect the electrical connector.
    Torque: 10Nm
  6. Lower the vehicle.
  7. Calibrate the differential locking motor using the diagnostic tool.
