Published: 28-Mar-2018

2007.0 Range Rover Sport (LS), 205-02

Rear Drive Axle/Differential

Axle Housing Bush (G2250095)

REMOVAL AND INSTALLATION

Special Tool(s)

E54216

205-825-03

Installer, Rear Axle Front Bush

E54207

205-825-04

Adaptor / button

E54209

205-825-05

Receiver Cup, Rear Differential Front Bush

E54210

205-825-06

Bearing housing

E54211

205-825-07

Remover / Installer long 16mm bolt

E55277

205-825-08

Nut for long 16mm bolt

E54206

211-294

Remover - Drop Arm

E54205

502-009-02

Remover, Rear Differential Rear Bush

Part(s)

StepPart nameQuantity
Installation Step 3Rear driveshaft constant velocity joint bolts4
Removal
NOTE:

Take note of the fitted position of the bush.


  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the muffler assembly.
    Refer to: Muffler (309-00B Exhaust System - V8 N/A 4.4L Petrol, Removal and Installation).
  3. E44306
    Remove the 3 bolts and 2 nuts. Remove the fuel tank heat shield.
  4. CAUTIONS:

    • Mark the position of the driveshaft flange in relation to the drive pinion flange.

    • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.

    E44308
    Remove and discard the 4 Torx bolts. Release the driveshaft from the rear axle drive flange.
  5. CAUTION:

    Make sure the weight of the axle is always supported.

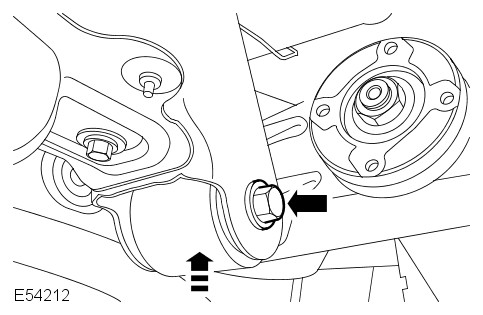

    E54212
    Remove the axle front retaining bolt. Using a suitable jack, lower the front of the axle.

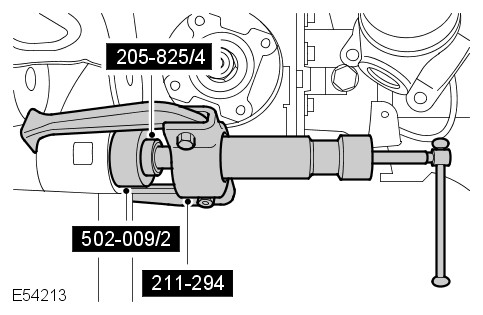

  6. E54213
    Using the special tools, remove the axle housing bushing.
    Special Tool(s): 205-825-04, 502-009-02, 211-294
Installation

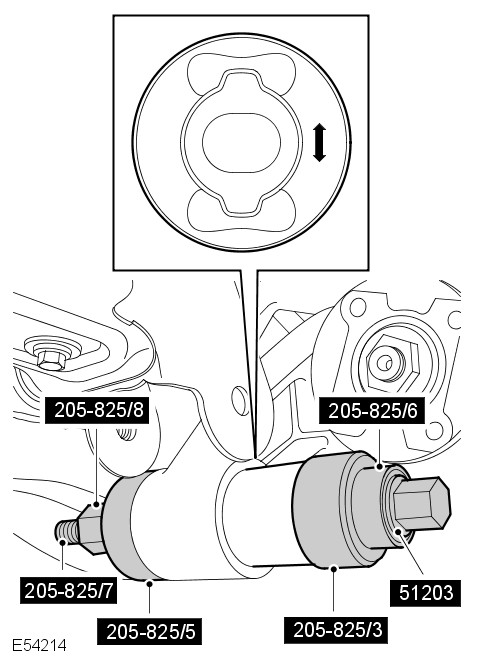

  1. E54214
    Using the special tools, install the axle housing bushing.
  2. CAUTION:

    Make sure the weight of the axle is always supported.

    Using a suitable jack, raise the front of the differential. Install and tighten the axle front retaining bolt.
    Torque: 275Nm
  3. Attach the driveshaft to the rear axle drive flange. Clean the component mating faces. Attach the driveshaft to the rear axle drive flange. Tighten the new Torx bolts.
    Renew Part: Rear driveshaft constant velocity joint bolts Quantity: 4.
    Torque: 150Nm
  4. Install the fuel tank heat shield. Tighten the bolts and nuts.
    Torque: 10Nm
  5. Install the muffler assembly.
    Refer to: Muffler (309-00B Exhaust System - V8 N/A 4.4L Petrol, Removal and Installation).
