2007.0 Range Rover Sport (LS), 204-05

Vehicle Dynamic Suspension

Air Suspension Pressure Sensor (G2250071)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 1Air suspension pressure sensor1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E49835
    Remove the 3 bolts. Release the 5 clips. Remove the air compressor housing cover.
  3. Using T4, depressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05, General Procedures).
  4. NOTE:

    Make sure the valve block does not become detached during removal of the air pressure sensor.

    Disconnect the electrical connector.
  5. CAUTION:

    Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

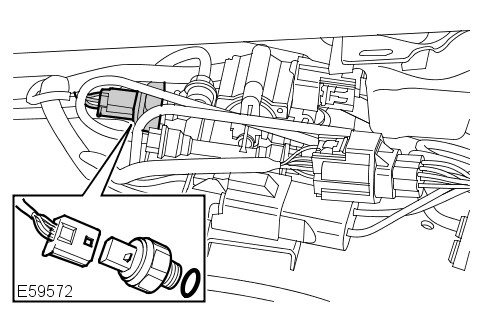

    E59572
    Remove the air pressure sensor. Remove and discard the O-ring seal.
Installation
  1. NOTE:

    Make sure the valve block does not become detached during installation of the air pressure sensor.

    Install a new O-ring seal. Install the air pressure sensor.
    Renew Part: Air suspension pressure sensor Quantity: 1.
    Torque: 5Nm
  2. Connect the electrical connector.
  3. Using T4, pressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05, General Procedures).
  4. CAUTIONS:

    • Make sure the air suspension compressor upper cover is correctly positioned.

    • Make sure the air suspension exhaust pipe is correctly located in to the air suspension upper cover.

    Install the air compressor housing cover. Install and tighten the bolts.
    Torque: 9Nm
