Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 204-05

Vehicle Dynamic Suspension

Air Suspension Compressor Drier (G2250064)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 1Air suspension compressor overhaul kit1
Removal
CAUTION:

If a new air suspension compressor, air compressor drier or air compressor delivery valve kit is installed due to failure, an air compressor relay must be installed. Failure to follow this instruction may result in damage to the air suspension system components.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the air suspension compressor.
    Refer to: Air Suspension Compressor (204-05 Vehicle Dynamic Suspension, Removal and Installation).
  3. CAUTION:

    Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.

    Release the air line from the retaining clip. Disconnect the air line from the air suspension compressor drier
  4. NOTE:

    If equipped, note the position of the air suspension compressor retaining cable.

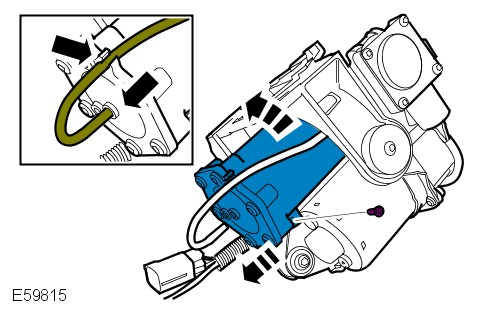

    E59815
    Remove the retaining screw. Remove and discard the O-ring seal. Remove the air suspension compressor drier.
Installation
  1. Lubricate the O-ring with a lithium based grease. Install a new O-ring seal.
    Renew Part: Air suspension compressor overhaul kit Quantity: 1.
  2. NOTE:

    If equipped, make sure the air suspension compressor retaining cable is correctly routed around the compressor cylinder head.

    Install the air suspension compressor drier. Install and tighten the retaining screw.
    Torque: 3Nm
  3. CAUTIONS:

    • Visually inspect the air line ends for damage or wear. Replace the air line as necessary.

    • Pull on the air line to make sure it is securely intalled in the connector.

    Connect the air line to the air suspension compressor drier. Attach the air line to the retaining clip.
  4. Install the air suspension compressor.
    Refer to: Air Suspension Compressor (204-05 Vehicle Dynamic Suspension, Removal and Installation).
