2007.0 Range Rover Sport (LS), 204-05

Vehicle Dynamic Suspension

Air Suspension Reservoir (G2250062)

REMOVAL AND INSTALLATION
  • 60.50.03
  • Air reservoir - renew
  • All Derivatives
  • 0.50
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Air line connector(s)1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Using T4, depressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05 Vehicle Dynamic Suspension, General Procedures).
  3. CAUTIONS:

    • Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

    • The air line must only be disconnected by removal of the voss connector. Do not remove the air line retaining boss from the air suspension reservoir. Failure to follow this instruction may result in damage to the vehicle.

    • Visually inspect the air line ends for damage or wear. Repair or replace the air line as necessary.

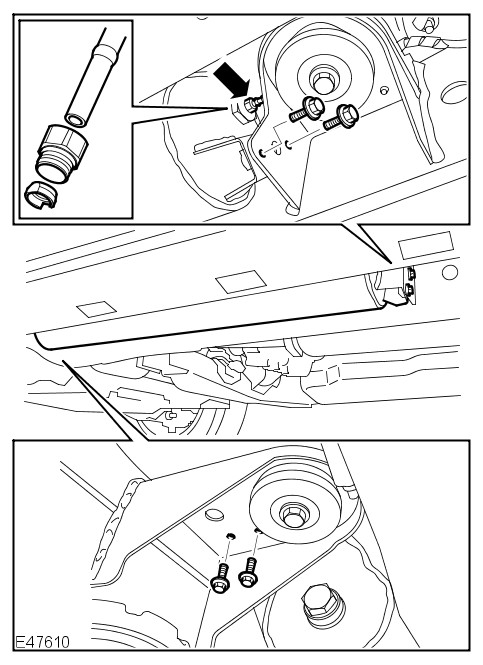

    E47610
    Disconnect the air line from the air suspension reservoir.
  4. Remove the 4 bolts. Remove the air suspension reservoir.
  5. Remove and discard the collet and the union. Remove the Voss connector from the air line.
Installation
  1. CAUTION:

    Make sure the new Voss connector is installed and fully tightened with the alignment plug installed.

    Install a new Voss connector to the air reservoir. Tighten the new Voss connector.
    Renew Part: Air line connector(s) Quantity: 1.
    Torque: 5Nm
  2. Install the air suspension reservoir. Locate the air reservoir to the chassis brackets, fit and tighten the bolts. Fully seat the air line into the Voss connector. Pull on the air line to make sure it is fully installed into the Voss connecter.
    Torque: 23Nm
  3. Using T4, pressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05 Vehicle Dynamic Suspension, General Procedures).
