Published: 15-Mar-2018

2007.0 Range Rover Sport (LS), 412-03D

Air Conditioning - TDV8 3.6L Diesel

Thermostatic Expansion Valve (G2249687)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 1Thermostatic expansion valve O-ring seal kit1
Removal
  1. Evacuate the A/C system.
    Refer to: Air Conditioning System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).
  2. Remove the instrument panel upper section.
    Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).
  3. CAUTION:

    Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.

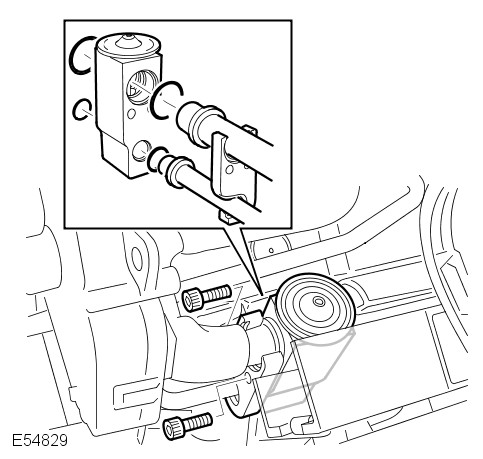

    E54829
    Remove the cover. Remove the 2 Allen bolts. Remove the thermostatic expansion valve. Remove and discard the 4 O-ring seals.
Installation
  1. Clean the components. Install the thermostatic expansion valve. Install the new O-ring seals. Tighten the Allen bolts. Install the cover.
    Renew Part: Thermostatic expansion valve O-ring seal kit Quantity: 1.
    Torque: 5Nm
  2. Install the instrument panel upper section.
    Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).
  3. Recharge the A/C system.
    Refer to: Air Conditioning System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).
