2007.0 Range Rover Sport (LS), 308-07B

Transfer Case

Transfer Case Input Shaft Seal (G2249653)

IN-VEHICLE REPAIR

Special Tool(s)

E85579

303-903

Remover, Input Shaft Seal

E50941

308-598

Installer, Oil Seal

Part(s)

StepPart nameQuantity
Installation Step 1Transfer case input shaft oil seal1
Removal
  1. Disconnect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the transfer case.
    Refer to: Transfer Case - TDV8 3.6L Diesel (308-07B Transfer Case, Removal).
  4. CAUTION:

    Care must be taken to avoid damage to the seal register and running surface.

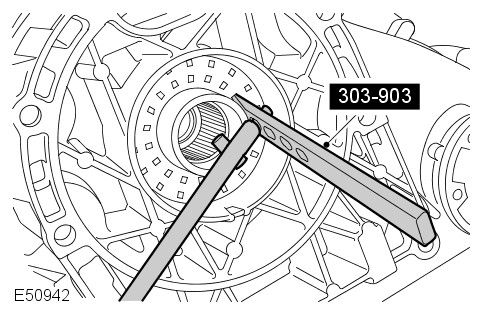

    E50942
    Use the special tool. Carefully remove and discard the oil seal.
    Special Tool(s): 303-903
Installation
  1. CAUTION:

    Oil seals must be fitted dry.

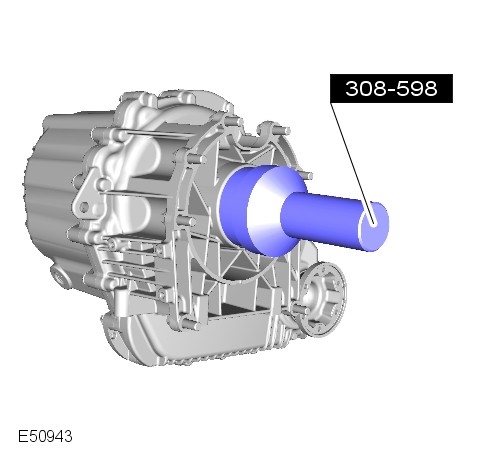

    E50943
    Clean the seal register. Use the special tool. Install a new seal.
    Install the Special Tool(s): 308-598
    Renew Part: Transfer case input shaft oil seal Quantity: 1.
  2. Install the transfer case.
    Refer to: Transfer Case - TDV8 3.6L Diesel (308-07B Transfer Case, Removal).
  3. Connect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
